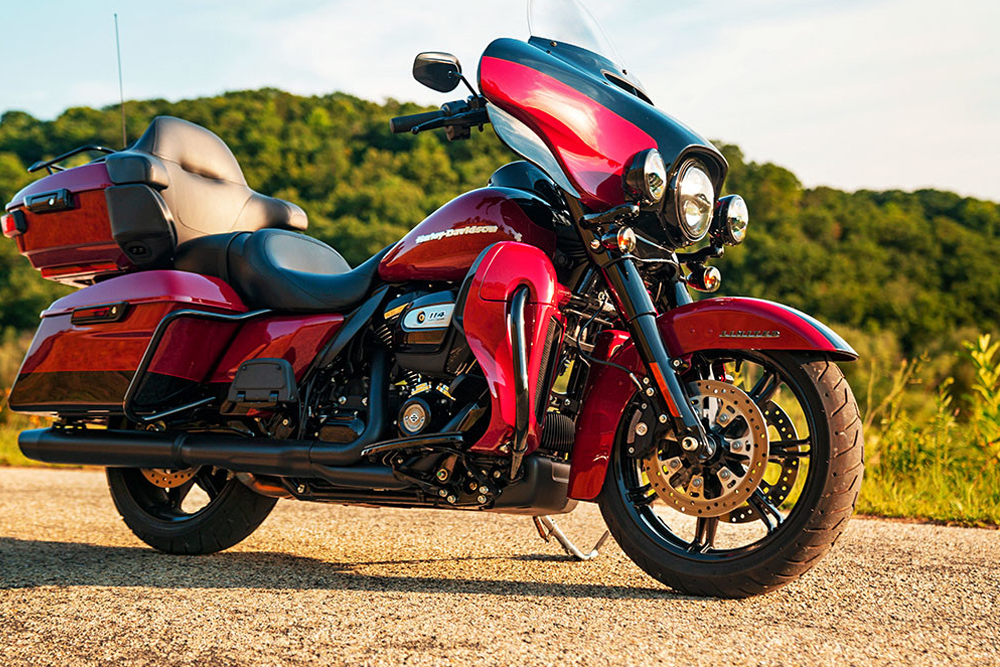

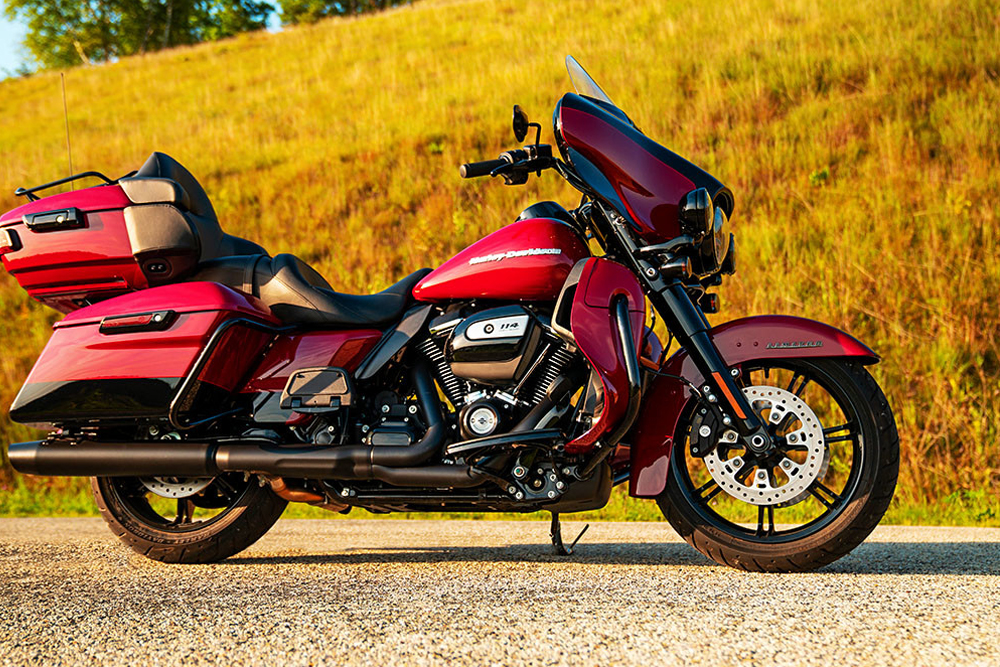

ULTRA LIMITED

DESCRIPTION

From its heated handgrips down to its Twin-Cooled^™ Milwaukee-Eight® 114 engine, the Ultra Limited motorcycle helps you find your balance in its marriage of machinery and technology. Need your bike to express your dark side? Check out the new bold black finish that engulfs the entire bike, from its wind-cutting, vented batwing fairing back to its roomy Tour-Pak^® carrier.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2600 mm
Seat Height, Unladen	740 mm
Ground Clearance	135 mm
Rake (Steering Head) (Deg)	26
Trail	170 mm
Wheelbase	1625 mm
Tires, Front Specifications	BW 130/70B18 63H
Tires, Rear Specification	BW 180/55B18 80H
Fuel Capacity	22.7 l
Oil Capacity	4.7 l
Weight, as Shipped	399 kg
Weight, in Running Order	416 kg
Luggage Capacity - Volume	0.132 m³

ENGINE

Engine	Twin-Cooled™ Milwaukee-Eight™ 114
Bore	102 mm
Stroke	114 mm
Displacement	1868 cm³
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-1-2 dual exhaust with tapered mufflers

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.593
Gear Ratio (Overall) 2^nd (*Cert)	6.65
Gear Ratio (Overall) 3^rd (*Cert)	4.938
Gear Ratio (Overall) 4^th (*Cert)	4
Gear Ratio (Overall) 5^th (*Cert)	3.407
Gear Ratio (Overall) 6^th (*Cert)	2.875

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	160 Nm
Engine Torque (RPM)	3000
Lean Angle, Right (Deg.)	32
Lean Angle, Left (Deg.)	32

CHASSIS

Wheels, Optional Style Type	Gloss Black Slicer II
Wheels, Front Type	Slicer II cast aluminum with clear coat
Wheels, Rear Type	Slicer II cast aluminum with clear coat
Brakes, Caliper Type	32 mm, 4-piston fixed front and rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp indicator
Gauges	Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

INFOTAINMENT

Infotainment System	Boom!™ Box GTS
Type	Full Color TFT
Watts Per Channel	25
Speakers	4
Speaker Size	5.25 inch BOOM standard
Headset Specifications (If equipped)	16-64 ohms
AM	Standard
FM	Standard
MW	Standard
LW	Standard
Weather Band (WB)	Standard
SD Card, Flash Drive and MP3 - via USB Connection	Supported
Languages	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Hands-Free Mobile Phone - via Bluetooth	Standard
Voice Recognition Languages: Phone Functions Only	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Voice Recognition Languages: Tuner / Media / Navigation	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Text-to-speech (Tts) Languages	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Rider/Passenger Intercom	Standard
Vehicle Information Screen (Air Temperature, Oil Pressure And Eitms)	Standard
USB	USB/MTP/iPod/iPhone
Bluetooth	Phone/Media Supported
