TRI GLIDE^™ ULTRA

Length

2670 mm

Seat Height, Unladen

735 mm

Ground Clearance

125 mm

Rake (Steering Head) (Deg)

26

Trail

100 mm

Wheelbase

1670 mm

Tires, Front Specifications

MT90B16 72H

Tires, Rear Specification

P205/65R15 92T

Fuel Capacity

22.7 l

Oil Capacity

4.7 l

Weight, as Shipped

546 kg

Weight, in Running Order

564 kg

Luggage Capacity - Volume

0.19 m³

Engine

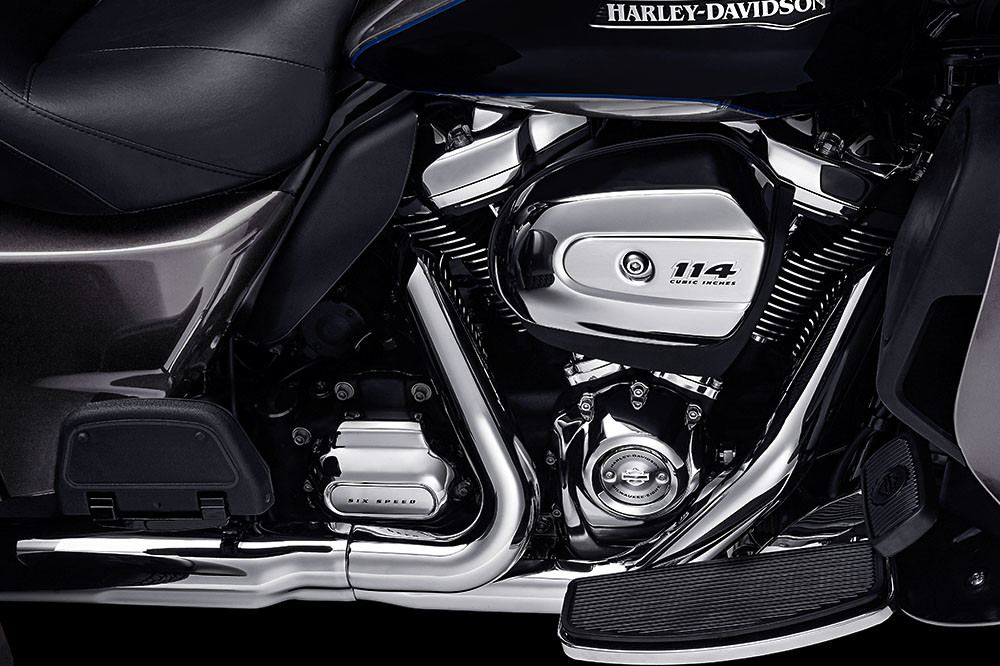

Twin-Cooled™ Milwaukee-Eight™ 114

Bore

102 mm

Stroke

114 mm

Displacement

1868 cm³

Compression Ratio

10.5:1

Fuel System

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2-1-2 dual exhaust with tapered mufflers

Primary Drive (*Cert)

Chain, 34/46 ratio

Gear Ratio (Overall) 1^st (*Cert)

10.534

Gear Ratio (Overall) 2^nd (*Cert)

7.302

Gear Ratio (Overall) 3^rd (*Cert)

5.423

Gear Ratio (Overall) 4^th (*Cert)

4.392

Gear Ratio (Overall) 5^th (*Cert)

3.741

Gear Ratio (Overall) 6^th (*Cert)

3.157

Engine Torque Testing Method

EC 134/2014

Engine Torque (*Cert)

159 Nm

Engine Torque (RPM)

3000

Wheels, Front Type

Black, 7-spoke Cast Aluminum

Wheels, Rear Type

Black, 7-spoke Cast Aluminum

Brakes, Caliper Type

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

Lights (As per country regulation), Indicator Lamps

High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator

Gauges

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

Infotainment System

Boom!™ Box GTS

Type

Full Color TFT

Watts Per Channel

25

Speakers

4

Speaker Size

5.25 inch/6.5 inch P&A Upgrade

Headset Specifications (If equipped)

16 - 64 ohms

AM

Standard

FM

Standard

MW

Standard

LW

Standard

SD Card, Flash Drive and MP3 - via USB Connection

Supported

Languages

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Hands-Free Mobile Phone - via Bluetooth

Standard

Voice Recognition Languages: Phone Functions Only

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Voice Recognition Languages: Tuner / Media / Navigation

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Text-to-speech (Tts) Languages

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Rider/Passenger Intercom

Rider Standard

Vehicle Information Screen (Air Temperature, Oil Pressure And Eitms)

Standard

USB

USB/MTP/iPod/iPhone

Bluetooth

Phone/Media Supported
