STREET BOB™

DESCRIPTION

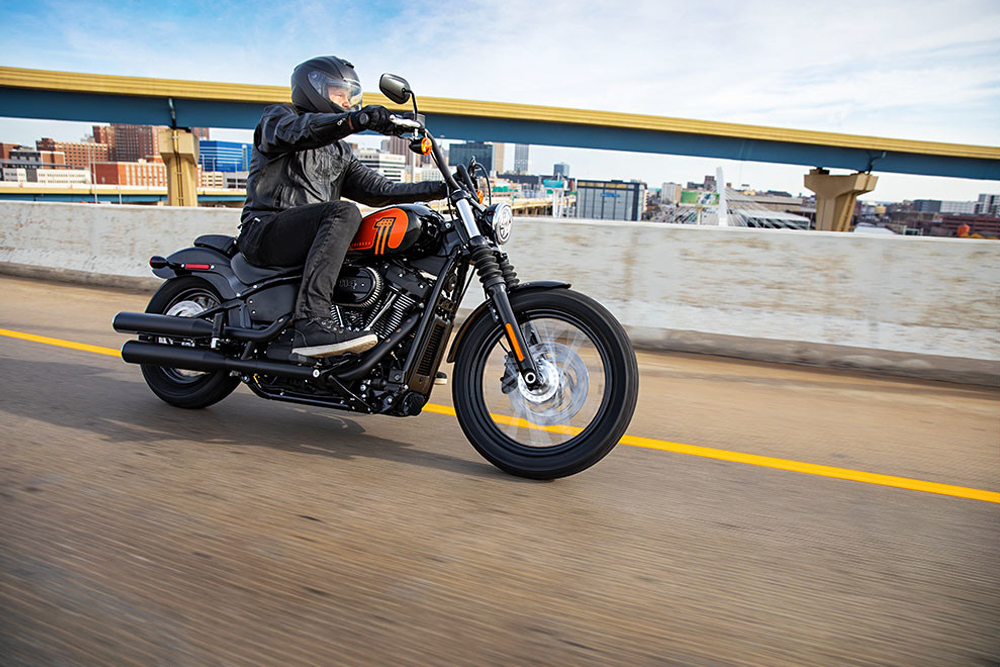

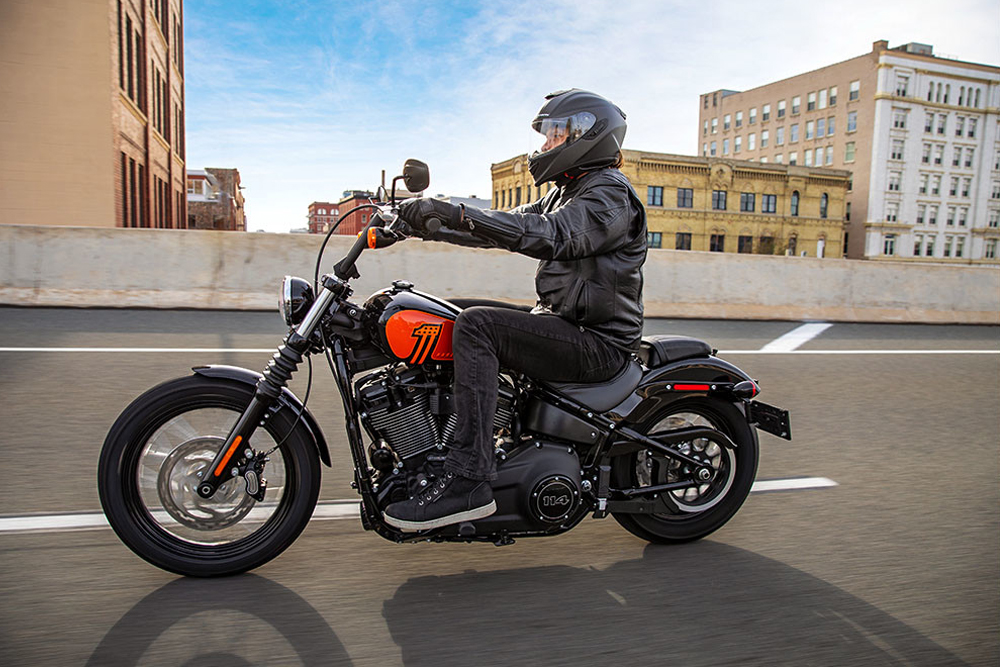

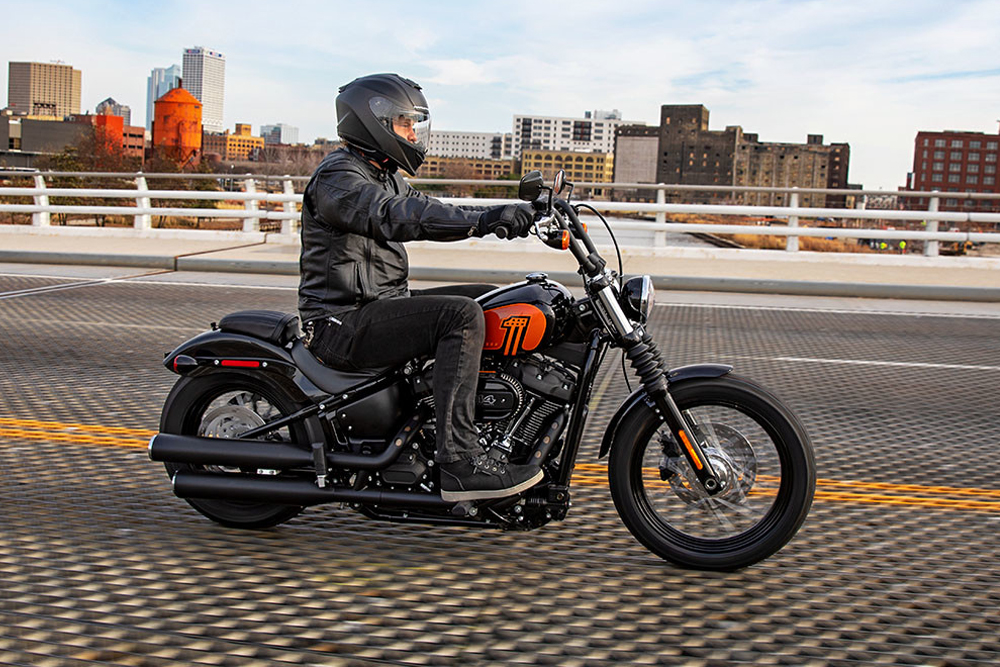

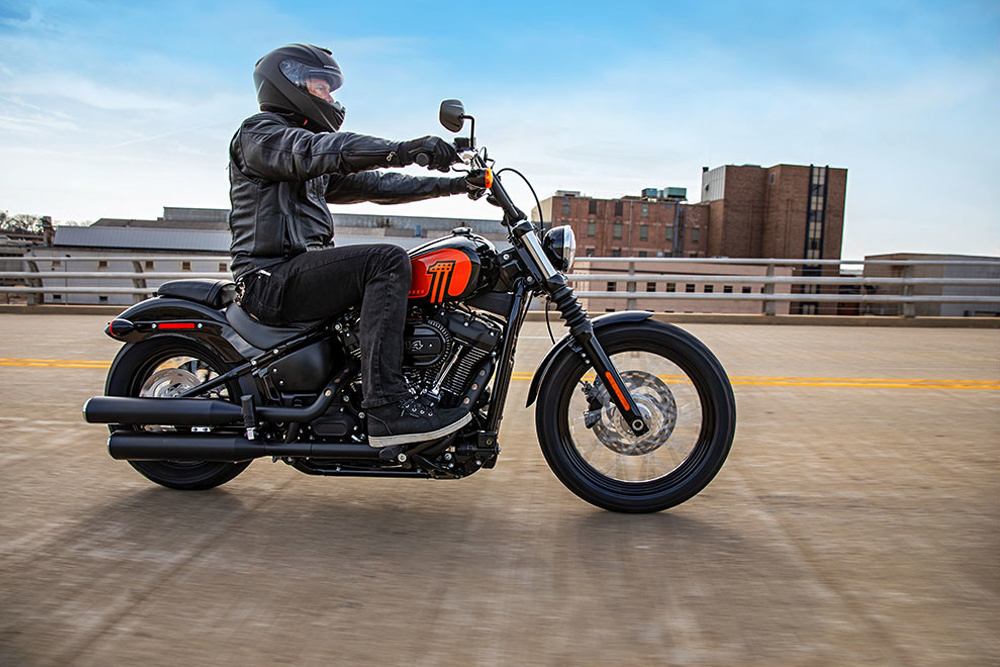

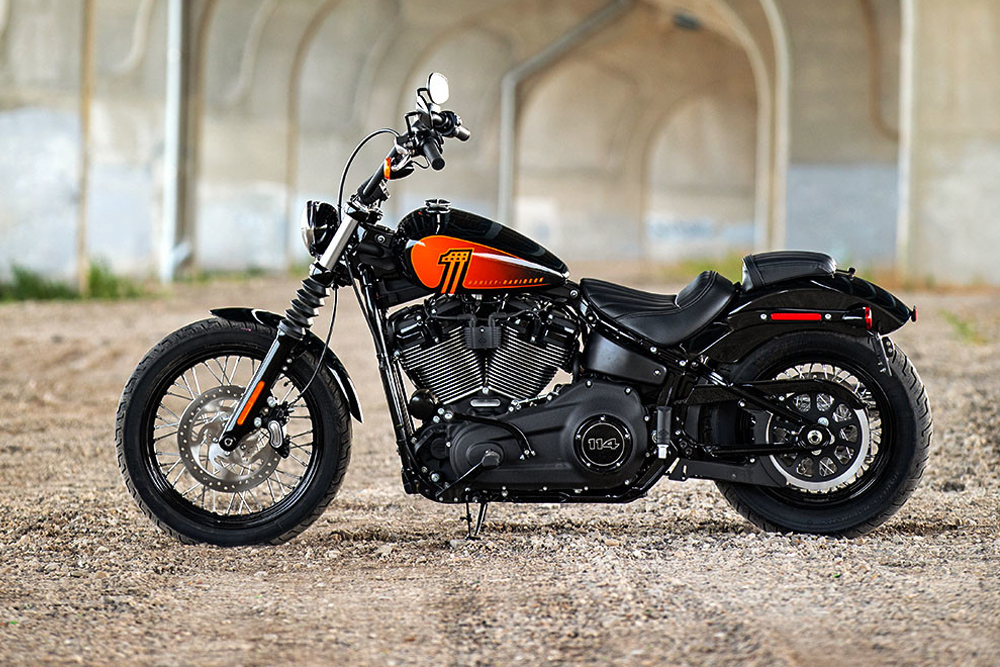

The lightest-weight Softail equipped with a Milwaukee-Eight^® 114 engine for a quick and nimble ride with power to spare. A perfect performance base for customization with 2-up seating, black steel laced wheels and dark finishes deliver no nonsense, Raw Bobber attitude.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2320 mm
Seat Height, Laden	655 mm
Seat Height, Unladen	680 mm
Ground Clearance	125 mm
Rake (Steering Head) (Deg)	30
Trail	157 mm
Wheelbase	1630 mm
Tyres, Front Specifications	100/90B19,57H,BW
Tyres, Rear Specification	150/80B16,77H,BW
Fuel capacity	13.2 l
Oil Capacity (W/Filter)	4.7 l
Weight, as Shipped	286 kg
Weight, in Running Order	297.10 kg

ENGINE

Engine	Milwaukee-Eight^® 114
Bore	102.0064 mm
Stroke	114.3 mm
Displacement	1868 cm³
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-2 offset shotgun; catalyst in muffler

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.311
Gear Ratio (Overall) 2^nd (*Cert)	6.454
Gear Ratio (Overall) 3^rd (*Cert)	4.793
Gear Ratio (Overall) 4^th (*Cert)	3.882
Gear Ratio (Overall) 5^th (*Cert)	3.307
Gear Ratio (Overall) 6^th (*Cert)	2.79

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque	155 Nm
Lean Angle, Right (Deg.)	28.5
Lean Angle, Left (Deg.)	28.5

CHASSIS

Wheels, Front Type	Gloss Black, Steel Laced
Wheels, Rear Type	Gloss Black, Steel Laced
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
Gauges	2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
