SPORTSTER^™ S

DESCRIPTION

Sportster™ S is the first chapter of a whole new book of the Sportster saga. A legacy born in 1957 that outperformed the competition is now rebuilt to blow away the standards of today.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2270 mm
Ground Clearance	90 mm
Rake	30
Trail	148 mm
Wheelbase	1520 mm
Tires, Front Specification	160/70TR17 73V
Tires, Rear Specification	180/70R16 77V
Tire, Type	Dunlop® Harley-Davidson Series, radial
Fuel Capacity	11.8 l
Oil Capacity (w/filter)	4.5 l
Weight, As Shipped	221 kg
Weight, In Running Order	228 kg

ENGINE

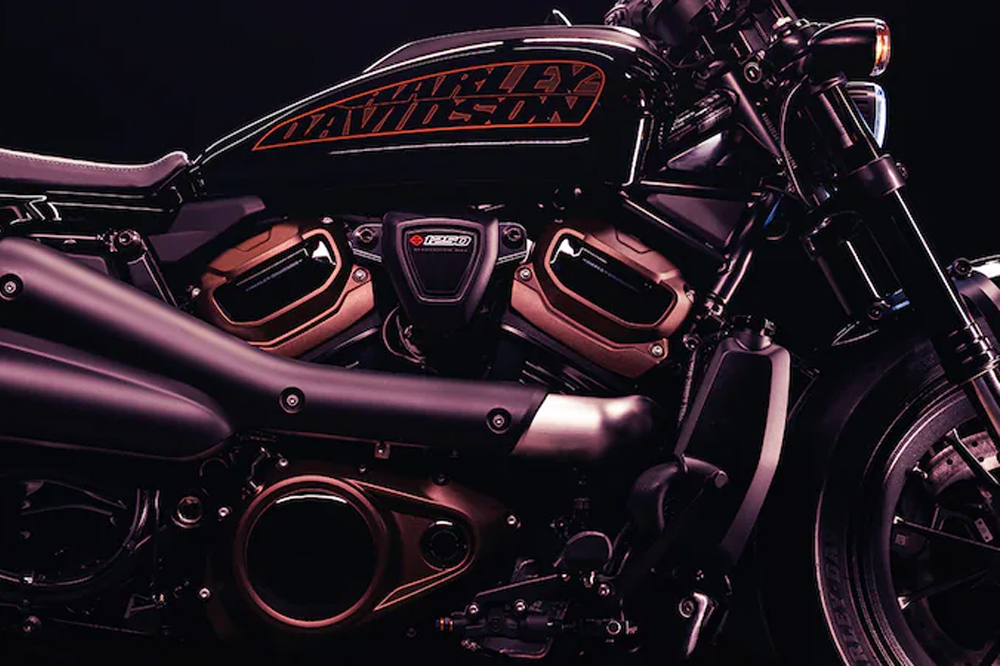

Engine ²	Revolution^® Max 1250
Bore	105 mm
Stroke	72.3 mm
Displacement	1252 cc
Compression Ratio	12.0:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)

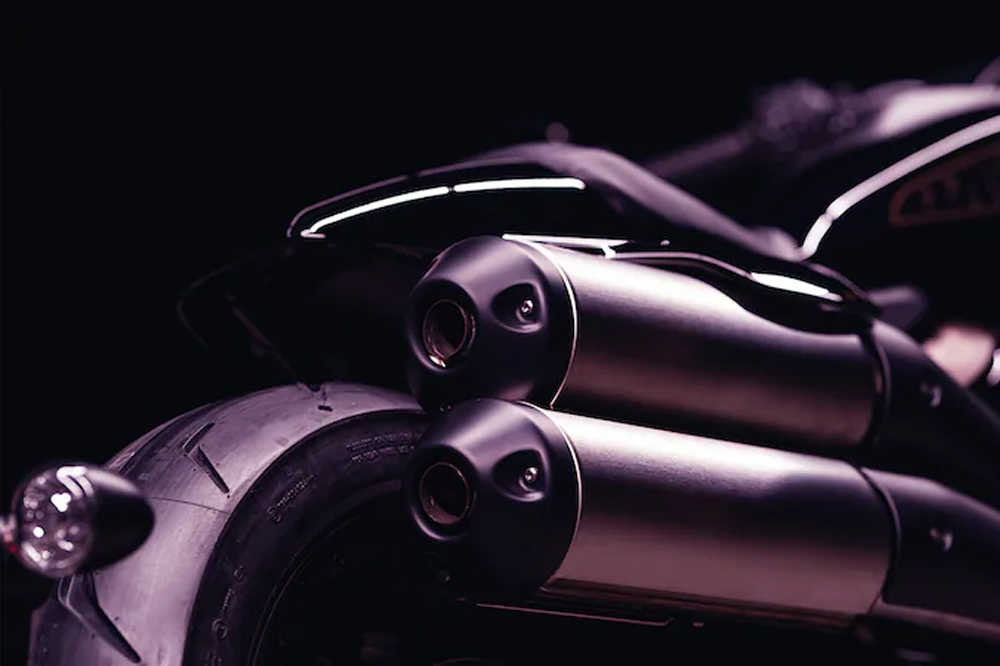

Exhaust	2-into-1-into-2; catalyst in muffler

DRIVE TRAIN

Primary Drive	Gear, 49/89 ratio
Gear Ratio (Overall) 1^st	12.21
Gear Ratio (Overall) 2^nd	9.022
Gear Ratio (Overall) 3^rd	6.994
Gear Ratio (Overall) 4^th	5.641
Gear Ratio (Overall) 5^th	4.731
Gear Ratio (Overall) 6^th	4.131

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque ³	125 Nm
Engine Torque (RPM)	6000
Horsepower	90 kW
Lean Angle, Right (Deg.)	34
Lean Angle, Left (Deg.)	34
Fuel Economy Testing Method	EU 134/2014
Fuel Economy	5.1 l/100 km

CHASSIS

Front Fork	43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
Rear Shocks	Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability

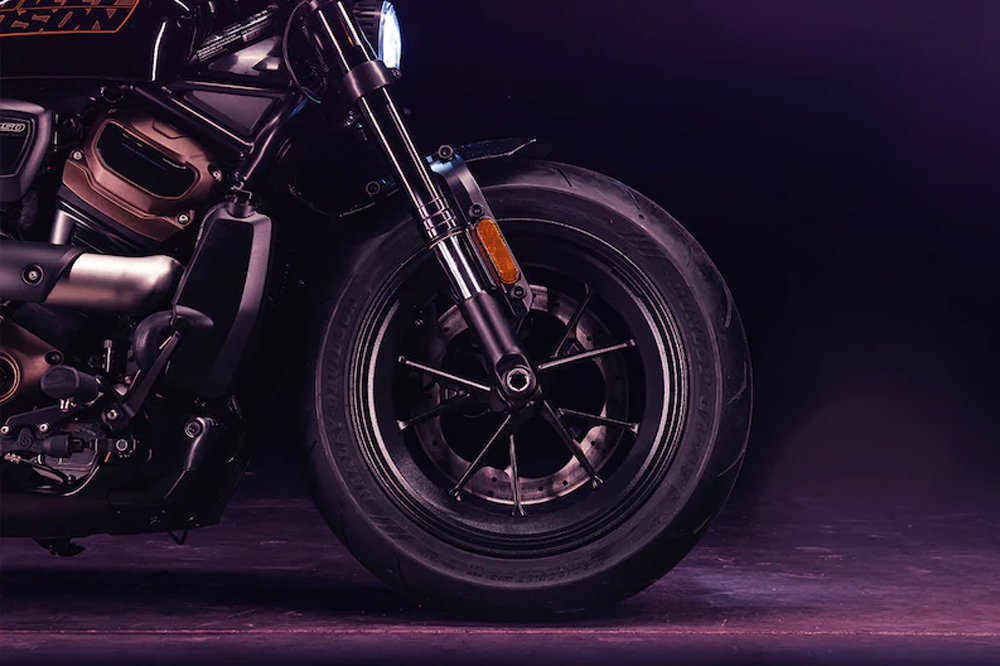

Wheels, Front Type ⁴	Aluminum cast, satin black
Wheels, Rear Type ⁴	Aluminum cast, satin black
Brakes, Caliper Type	Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper

ELECTRIC

Lights (As per country regulation), Indicator Lamps	All LED headlamp, low and high beam with signature position lighting. All LED Tail/Stop lamp with signature tail lighting
Gauges	4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

Screen Size	Color TFT
Type	109 mm
Headset Specifications (If Equipped)	Bluetooth
Languages	English (US/UK), Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Turkish, Vietnamese, Thai
Hands-Free Mobile Phone - Via Bluetooth	Yes
Voice Recognition Languages: Phone Functions Only	Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation	Phone dependent
Text-To-Speech (TTS) Languages	Phone dependent
Rider/Passenger Intercom	Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)	TPMS, Engine temp, Battery Voltage, Ambient Air Temp
USB	Charging and Instrument update, USB-C, 5V, 3A
Bluetooth	Yes
