SOFTAIL^™ STANDARD

DESCRIPTION

A stripped-down, souped-up, bobber with a post WWII era look. You get the power and soul-satisfying sound of the Milwaukee-Eight^® 107 V-Twin to take you into the future. Fast.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2320 mm

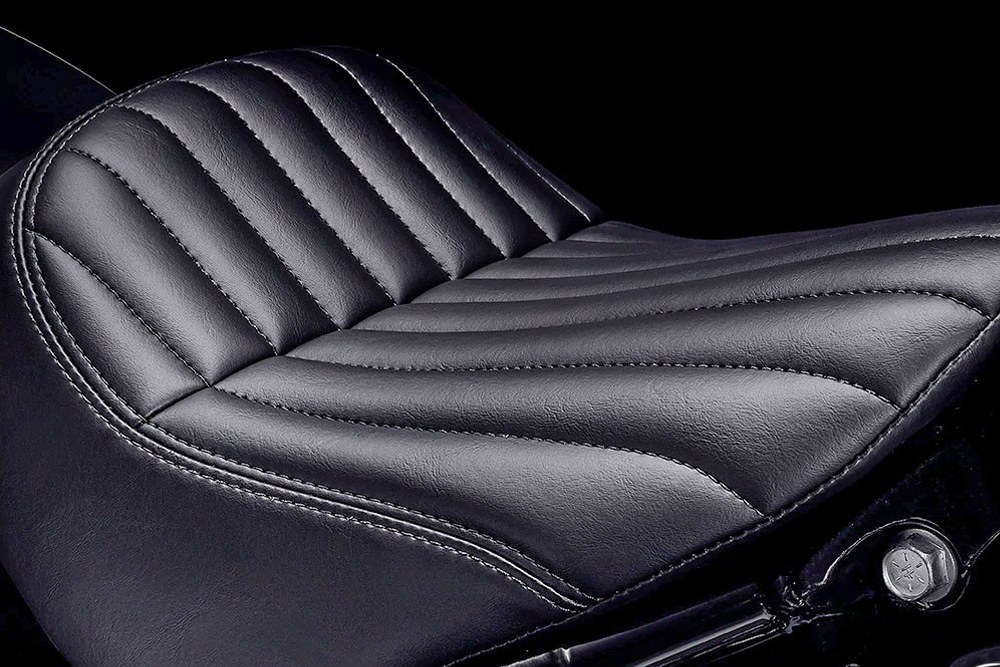

Seat Height, Unladen	680 mm
Ground Clearance	125 mm
Rake (Steering Head) (Deg)	30
Trail	157 mm
Wheelbase	1630 mm
Tires, Front Specifications	100/90B19,57H,BW
Tires, Rear Specification	150/80B16,77H,BW

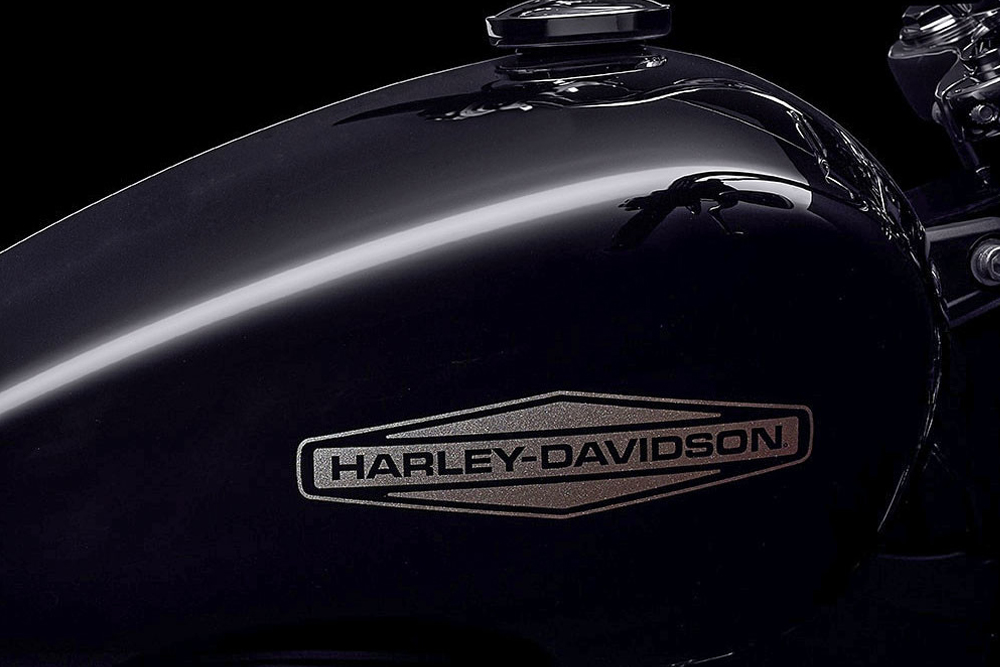

Fuel capacity	13.2 l
Oil Capacity (W/Filter)	4.7 l
Weight, as Shipped	291 kg
Weight, in Running Order	297 kg

ENGINE

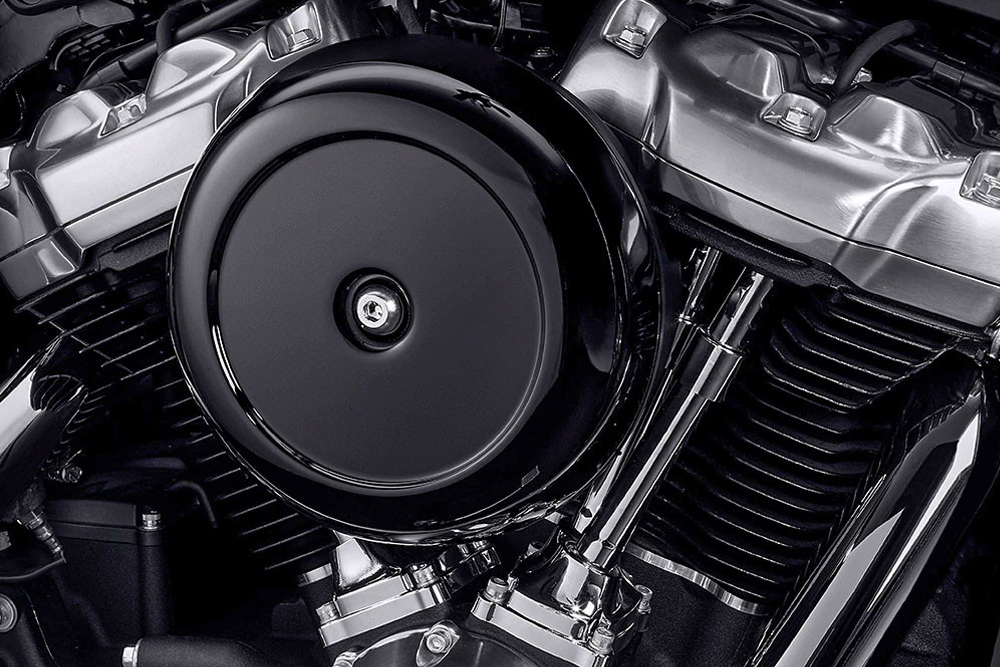

Engine	Milwaukee-Eight^™ 107
Bore	100 mm
Stroke	111 mm
Displacement	1746 cm³
Compression Ratio	10.0:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-2 shotgun; catalyst in muffler

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.311
Gear Ratio (Overall) 2^nd (*Cert)	6.454
Gear Ratio (Overall) 3^rd (*Cert)	4.793
Gear Ratio (Overall) 4^th (*Cert)	3.882
Gear Ratio (Overall) 5^th (*Cert)	3.307
Gear Ratio (Overall) 6^th (*Cert)	2.79

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	144 Nm
Engine Torque (RPM)	3250
Lean Angle, Right (Deg.)	28.5
Lean Angle, Left (Deg.)	28.5

CHASSIS

Wheels, Front Type	Chrome Steel Laced
Wheels, Rear Type	Chrome Steel Laced
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear

ELECTRIC

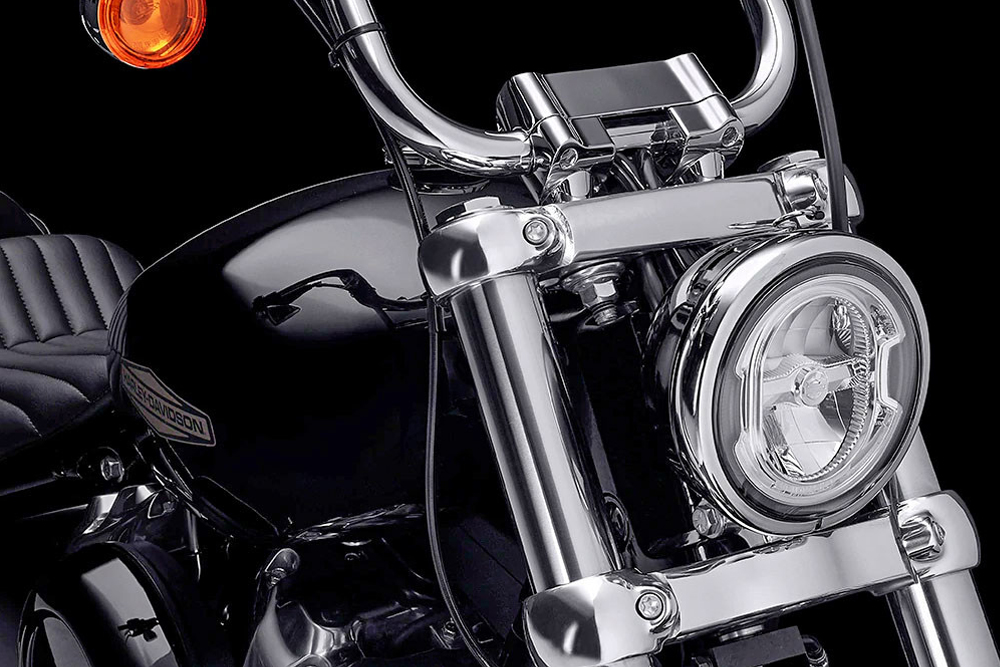

Lights (As per country regulation), Indicator Lamps	High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
Gauges	2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
