DESCRIPTION
The stripped-down nostalgic style was born in the ‘60s, but the power of the Milwaukee-Eight® 107 engine brings it all into the right now, fast.
DISCLAIMER
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
SPECIFICATION
DIMENSIONS
Length
2450 mm
Seat Height, Unladen
705 mm
Ground Clearance
135 mm
Rake (Steering Head) (Deg)
26
Trail
170 mm
Wheelbase
1625 mm
Tires, Front Specifications
BW 130/70B18 63H
Tires, Rear Specification
BW 180/55B18 80H
Fuel Capacity
22.7 l
Oil Capacity
4.9 l
Weight, as Shipped
360 kg
Weight, in Running Order
375 kg
Luggage Capacity - Volume
0.064 m3
ENGINE

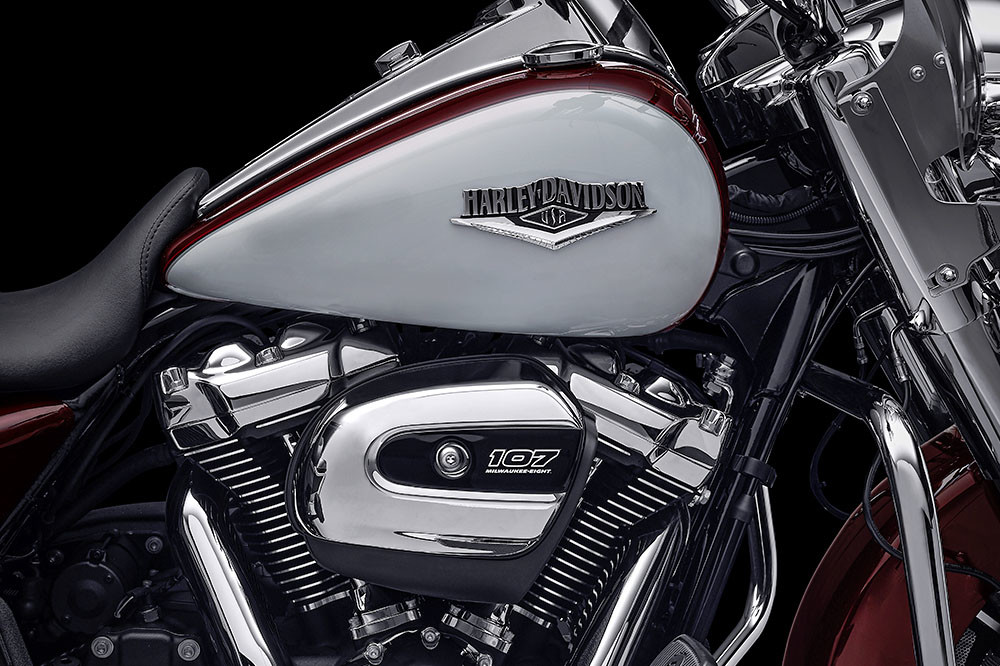

Engine
Milwaukee-Eight™ 107
Bore
100 mm
Stroke
111 mm
Displacement
1746 cm3
Compression Ratio
10.0:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
Chrome, 2-1-2 dual exhaust with tapered mufflers
DRIVE TRAIN
Primary Drive (*Cert)
Chain, 34/46 ratio
Gear Ratio (Overall) 1st (*Cert)
9.593
Gear Ratio (Overall) 2nd (*Cert)
6.65
Gear Ratio (Overall) 3rd (*Cert)
4.938
Gear Ratio (Overall) 4th (*Cert)
4
Gear Ratio (Overall) 5th (*Cert)
3.407
Gear Ratio (Overall) 6th (*Cert)
2.875
PERFORMANCE
Engine Torque Testing Method
EC 134/2014
Engine Torque (*Cert)
147 Nm
Engine Torque (RPM)
3250
Lean Angle, Right (Deg.)
32
Lean Angle, Left (Deg.)
CHASSIS
Wheels, Front Type
Slicer II Cast Aluminum
Wheels, Rear Type
Brakes, Caliper Type
32 mm, 4-piston fixed front and rear
ELECTRIC

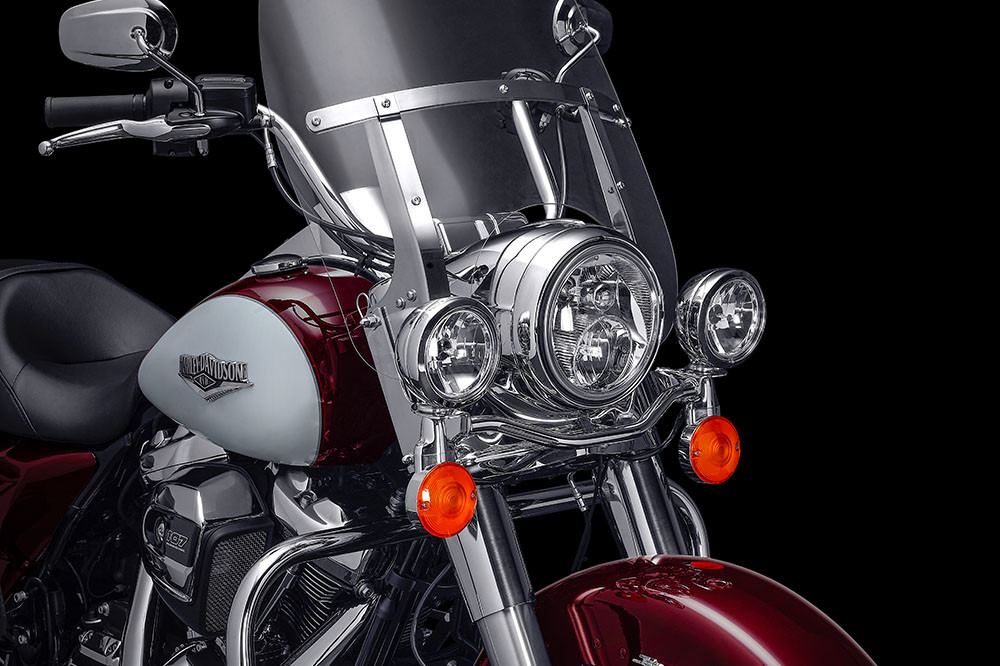

Lights (As per country regulation), Indicator Lamps
High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, battery, security system, low fuel warning, cruise control, ABS, Gear/RPM display, miles to empty display
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
