DESCRIPTION
There’s a dark side to our heritage. You’re looking at the king of it. You get top-of-the-line power and a blacked-out look that will stop traffic.
DISCLAIMER
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
SPECIFICATION
DIMENSIONS
Length
2420 mm
Seat Height, Unladen
695 mm
Ground Clearance
125 mm
Rake (Steering Head) (Deg)
26
Trail
175 mm
Wheelbase
1625 mm
Tires, Front Specifications
130/60B19 61H
Tires, Rear Specification
180/55B18 80H
Fuel Capacity
22.7 l
Oil Capacity
4.9 l
Weight, as Shipped
351 kg
Weight, in Running Order
366 kg
Luggage Capacity - Volume
0.07 m3
ENGINE
Engine
Milwaukee-Eight™ 107
Bore
102 mm
Stroke
114 mm
Displacement
1868 cm3
Compression Ratio
10.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
Black, 2-1-2 dual exhaust with tapered mufflers
DRIVE TRAIN
Primary Drive (*Cert)
Chain, 34/46 ratio
Gear Ratio (Overall) 1st (*Cert)
9.593
Gear Ratio (Overall) 2nd (*Cert)
6.65
Gear Ratio (Overall) 3rd (*Cert)
4.938
Gear Ratio (Overall) 4th (*Cert)
4
Gear Ratio (Overall) 5th (*Cert)
3.407
Gear Ratio (Overall) 6th (*Cert)
2.875
PERFORMANCE
Engine Torque Testing Method
EC 134/2014
Engine Torque (*Cert)
158 Nm
Engine Torque (RPM)
3250
Lean Angle, Right (Deg.)
32
Lean Angle, Left (Deg.)
31
CHASSIS
Wheels, Front Type
Gloss Black Prodigy
Wheels, Rear Type
Brakes, Caliper Type

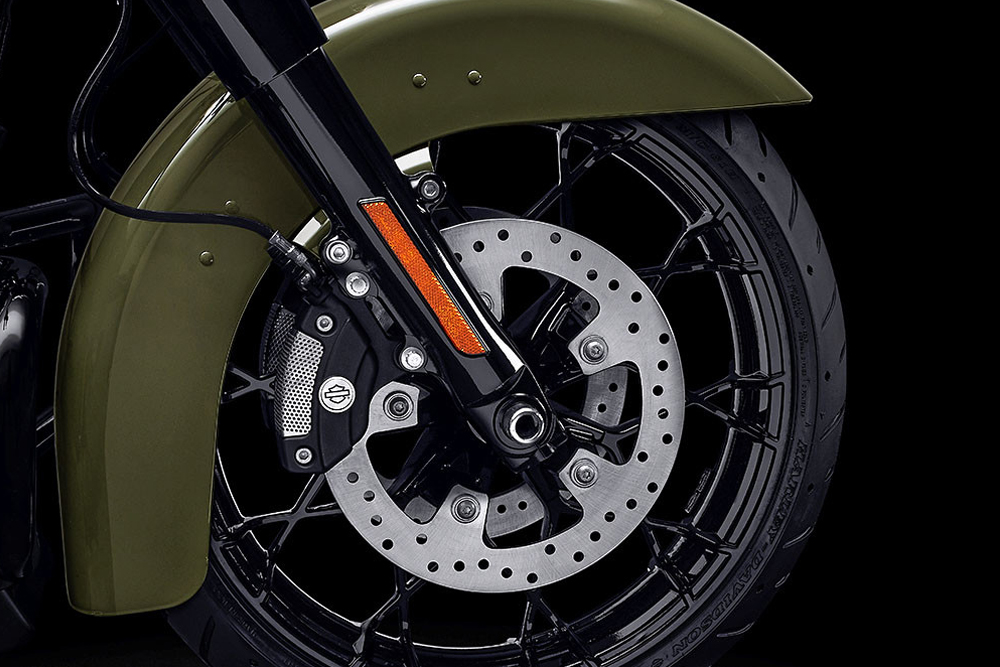

32 mm, 4-piston fixed front and rear
ELECTRIC
Lights (As per country regulation), Indicator Lamps
High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, battery, security system, low fuel warning, cruise control, ABS, Gear/RPM display, miles to empty display
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
