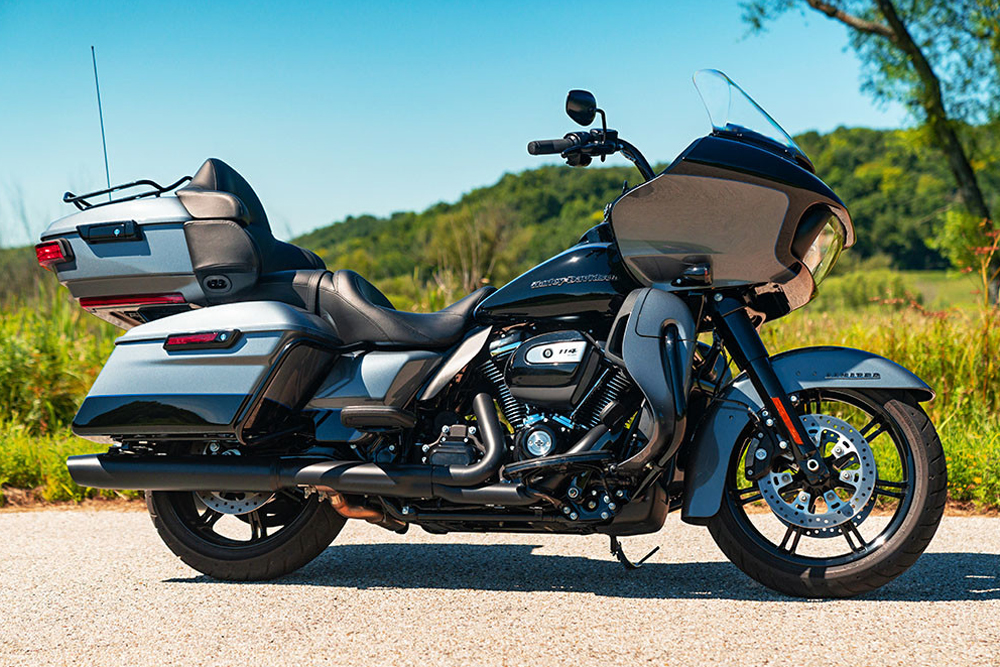

ROAD GLIDE^® LIMITED

Length

2595 mm

Seat Height, Unladen

735 mm

Ground Clearance

130 mm

Rake (Steering Head) (Deg)

26

Trail

170 mm

Wheelbase

1625 mm

Tires, Front Specifications

BW 130/70B18 63H

Tires, Rear Specification

BW 180/55B18 80H

Fuel Capacity

22.7 l

Oil Capacity

4.7 l

Weight, as Shipped

407 kg

Weight, in Running Order

423 kg

Luggage Capacity - Volume

0.132 m³

Engine

Twin-Cooled™ Milwaukee-Eight™ 114

Bore

102 mm

Stroke

114 mm

Displacement

1868 cm³

Compression Ratio

10.5:1

Fuel System

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2:1:2 dual exhaust with 4 in. tapered mufflers

Primary Drive (*Cert)

Chain, 34/46 ratio

Gear Ratio (Overall) 1^st (*Cert)

9.593

Gear Ratio (Overall) 2^nd (*Cert)

6.65

Gear Ratio (Overall) 3^rd (*Cert)

4.938

Gear Ratio (Overall) 4^th (*Cert)

4

Gear Ratio (Overall) 5^th (*Cert)

3.407

Gear Ratio (Overall) 6^th (*Cert)

2.875

Engine Torque Testing Method

EC 134/2014

Engine Torque (*Cert)

160 Nm

Engine Torque (RPM)

3000

Lean Angle, Right (Deg.)

32

Lean Angle, Left (Deg.)

32

Wheels, Optional Style Type

Gloss Black Slicer II

Wheels, Front Type

Slicer II cast aluminum with clear coat

Wheels, Rear Type

Slicer II cast aluminum with clear coat

Brakes, Caliper Type

32 mm, 4-piston fixed front and rear

Lights (As per country regulation), Indicator Lamps

High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS.

Gauges

Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment System

Boom!™ Box GTS

Type

Full Color TFT

Watts Per Channel

25

Speakers

4

Speaker Size

5.25 inch BOOM standard

Headset Specifications (If equipped)

16-64 ohms

AM

Standard

FM

Standard

MW

Standard

LW

Standard

SD Card, Flash Drive and MP3 - via USB Connection

Supported

Languages

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Hands-Free Mobile Phone - via Bluetooth

Standard

Voice Recognition Languages: Phone Functions Only

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Voice Recognition Languages: Tuner / Media / Navigation

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Text-to-speech (Tts) Languages

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Rider/Passenger Intercom

Standard

Vehicle Information Screen (Air Temperature, Oil Pressure And Eitms)

Standard

USB

USB/MTP/iPod/iPhone

Bluetooth

Phone/Media Supported
