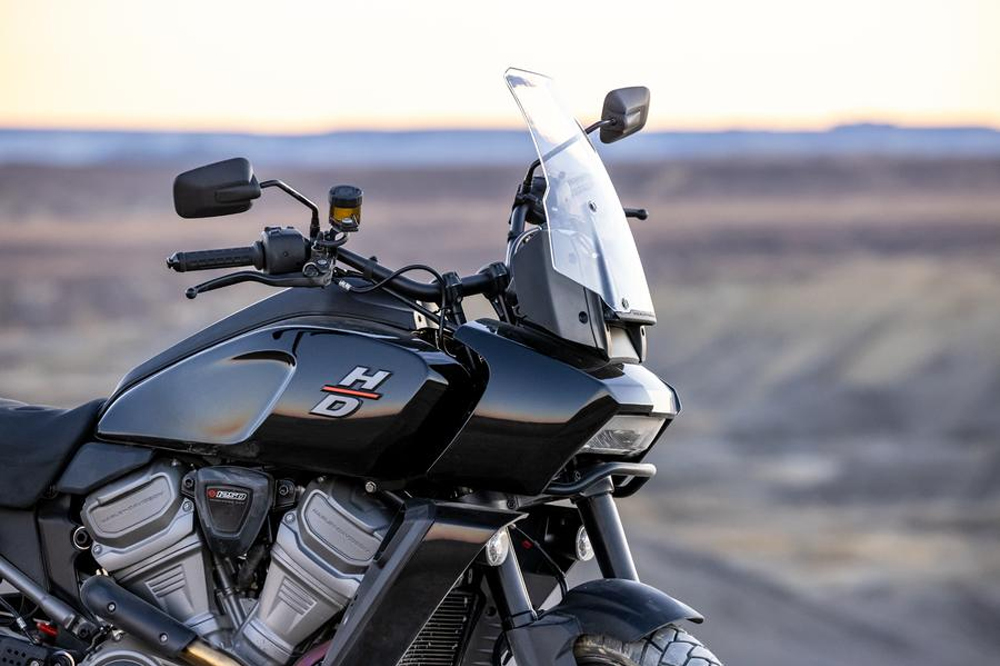

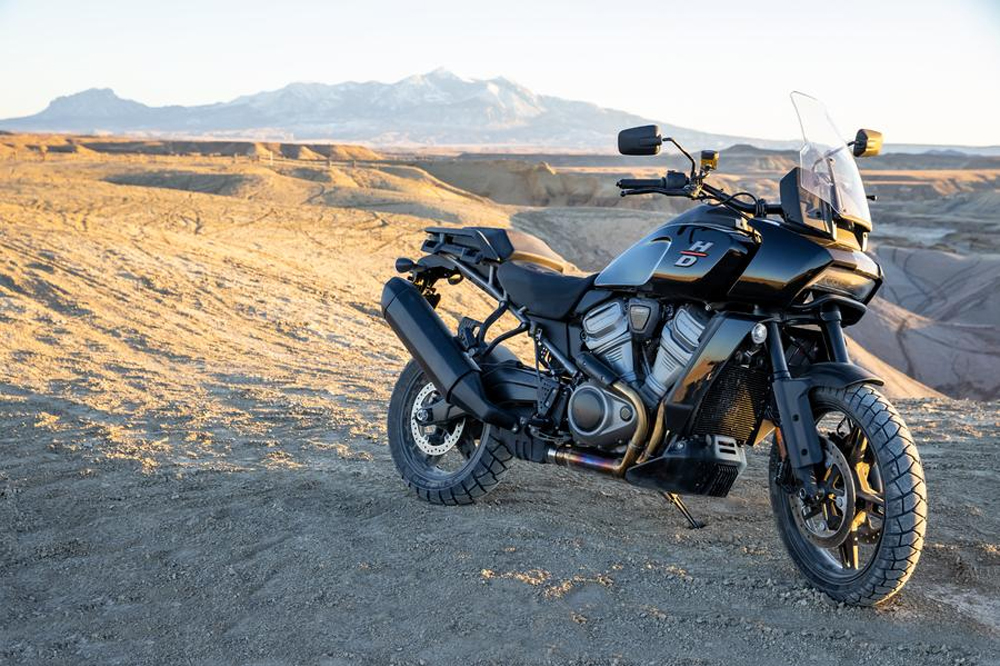

PAN AMERICA 1250

DESCRIPTION

Pan America 1250 motorcycle is a two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

Length

2265 mm

Ground Clearance

210 mm

Rake

25

Trail

108 mm

Wheelbase

1580 mm

Tires, Front Specification

120/70R19 60V

Tires, Rear Specification

170/60R17 72V

Tire, Type

H-D®/MichelinScorcher“Adventure”, Radial

Fuel Capacity

21.2 l

Oil Capacity (w/filter)

4.5 l

Weight, As Shipped

229 kg

Weight, In Running Order

245 kg

Engine

Revolution® Max 1250

Bore

105 mm

Stroke

72 mm

Displacement

1252 cc

Compression Ratio

13.0:1

Fuel System

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2-into-1-into-1; catalyst in header

Primary Drive

Gear, 49/89 ratio

Gear Ratio (Overall) 1st

13.11

Gear Ratio (Overall) 2nd

9.687

Gear Ratio (Overall) 3rd

7.509

Gear Ratio (Overall) 4th

6.057

Gear Ratio (Overall) 5th

5.08

Gear Ratio (Overall) 6th

4.436

Engine Torque Testing Method

EC 134/2014

Engine Torque

128 Nm

Engine Torque (RPM)

6750

Horsepower

152 PS / 150 HP / 112 kW @ 8750

Lean Angle, Right (Deg.)

42

Lean Angle, Left (Deg.)

42

Fuel Economy Testing Method

EU 134/2014

Fuel Economy

5.5 l/100 km

Front Fork

47mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

Rear Shocks

Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability

Wheels, Front Type

Aluminum cast, satin black

Wheels, Rear Type

Aluminum cast, satin black

Brakes, Caliper Type

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper

Lights (As per country regulation), Indicator Lamps

LED Bullet Turn Signals

Gauges

6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)

Screen Size

173 mm

Type

Color TFT w/ Touch

Headset Specifications (If Equipped)

Bluetooth

Languages

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Turkish, Vietnamese, Thai

Hands-Free Mobile Phone - Via Bluetooth

Standard

Voice Recognition Languages: Phone Functions Only

Phone dependent

Voice Recognition Languages: Tuner / Media / Navigation

Phone dependent

Text-To-Speech (TTS) Languages

Phone dependent

Rider/Passenger Intercom

Headset function only

Vehicle Information Screen (Air temperature, oil pressure and EITMS)

Engine temp, Battery Voltage

USB

Charging and Instrument update, USB-C, 5V, 3A

Bluetooth

Standard
