DESCRIPTION

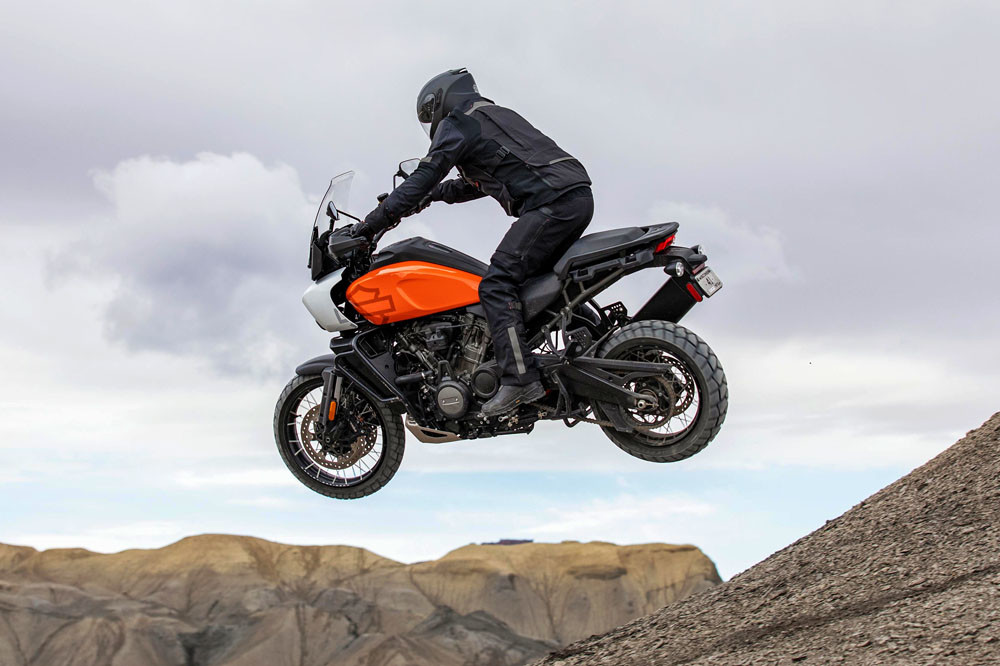

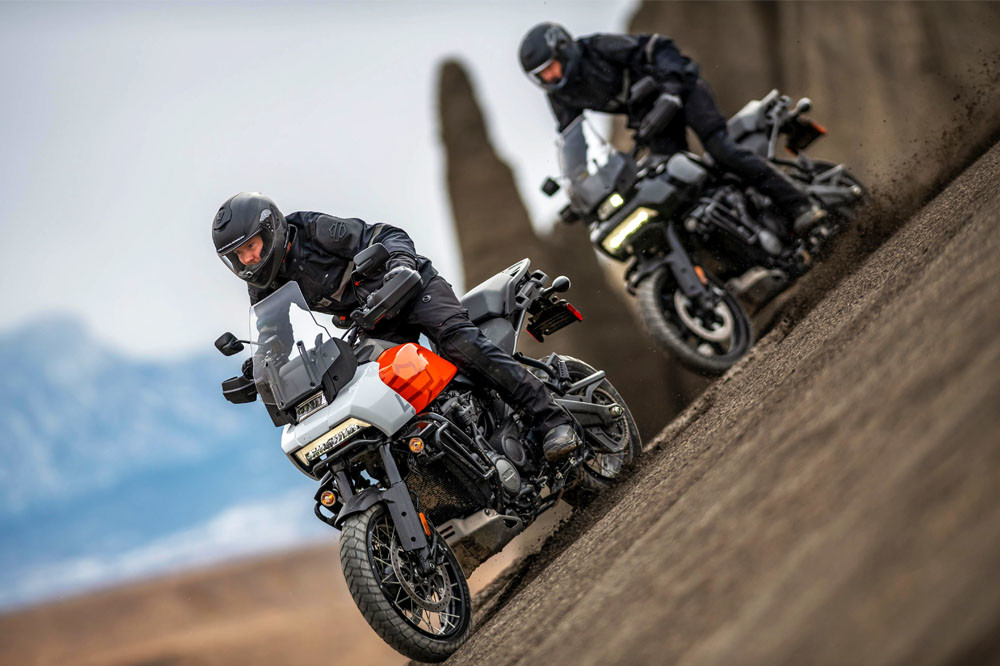

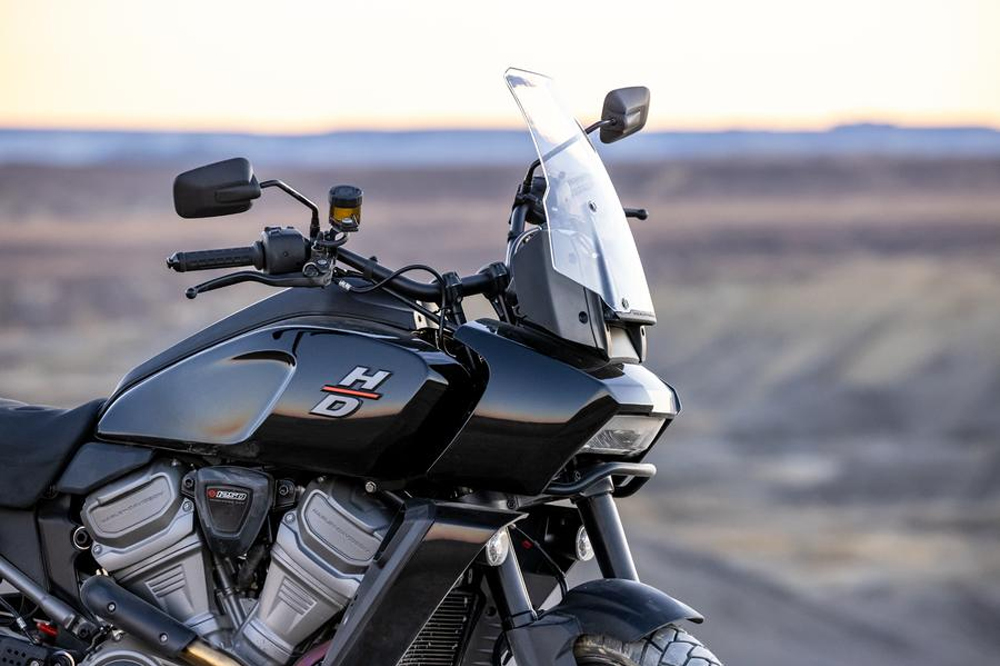

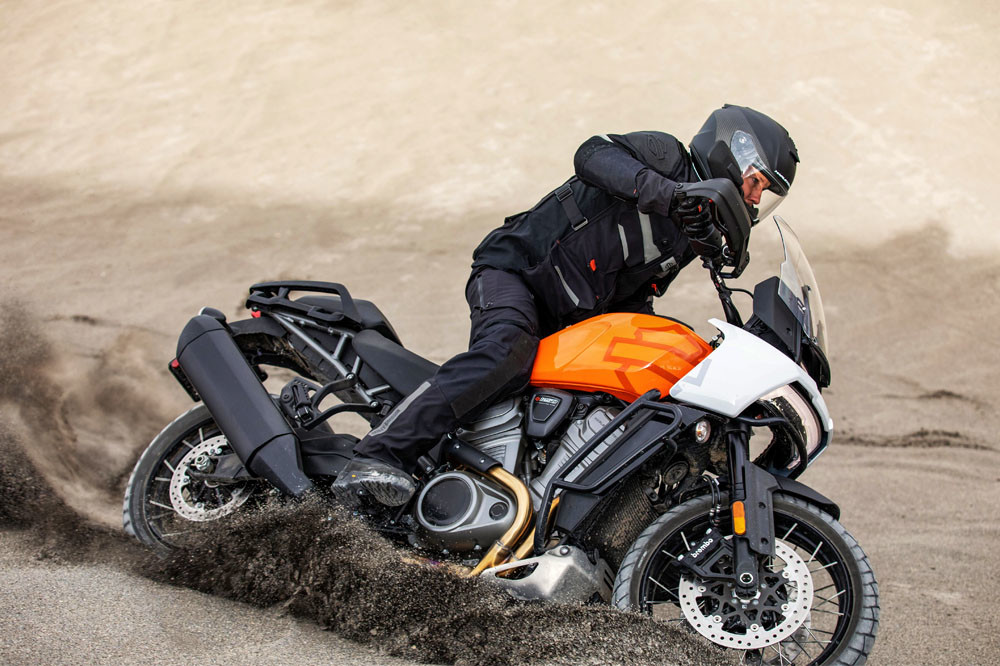

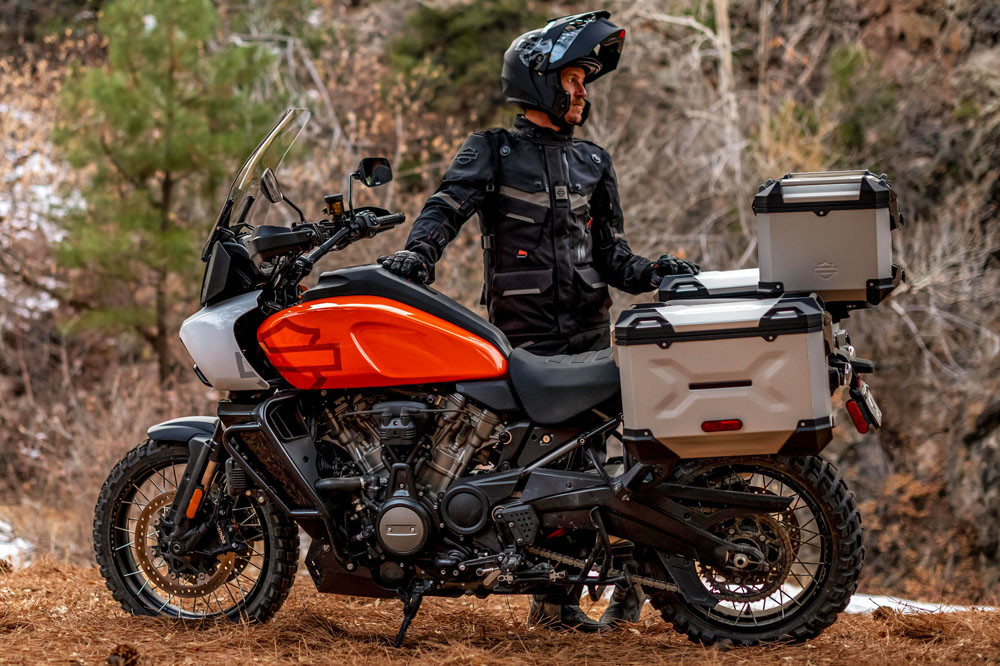

The Pan America™ 1250 Special motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.
DISCLAIMER
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
SPECIFICATION
DIMENSIONS
Length
2265 mm
Seat Height, Laden
836 mm
Seat Height, Unladen
890 mm
Fuel Capacity
21.2 l
Ground Clearance
175 mm
Rake
25
Trail
157 mm
Wheelbase
1585 mm
Tires, Front Specifications
120/70R19 60V
Tires, Rear Specifications
170/60R17 72V
Oil Capacity
4.5 l
Weight, as Shipped
242 kg
Weight, in Running Order
258.09 kg
ENGINE
Engine
Revolution® Max 1250
Bore
105 mm
Stroke
72 mm
Displacement
1252 cm3
Compression Ratio
13.0:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
DRIVE TRAIN
Primary Drive
Gear, 49/89 ratio
Gear Ratio (Overall) 1st
13.11
Gear Ratio (Overall) 2nd
9.687
Gear Ratio (Overall) 3rd
7.509
Gear Ratio (Overall) 4th
6.057
Gear Ratio (Overall) 5th
5.08
Gear Ratio (Overall) 6th
4.436
PERFORMANCE
Engine Torque Testing Method
J1349
Engine Torque
128 Nm
Engine Torque (RPM)
6,750
Lean Angle, Right (Deg.)
42
Lean Angle, Left (Deg.)
Fuel Economy Testing Method
Estimated City/HWY
Fuel Economy
5.5 l/100 km
CHASSIS
Wheels, Front Type
Aluminum cast, satin black
Wheels, Rear Type
Wheels, Optional Style Type
Annodized aluminum tubeless laced
Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
ELECTRIC
Lights (As per country regulation), Indicator Lamps
LED Bullet Turn Signals
Gauges
6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
INFOTAINMENT
Type
Color TFT w/ Touch
Headset Specifications (If Equipped)
Bluetooth
Hands-Free Mobile Phone - Via Bluetooth
Yes
Voice Recognition Languages: Phone Functions Only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Text-To-Speech (TTS) Languages
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
USB
Charging and Instrument update, USB-C, 5V, 3A
