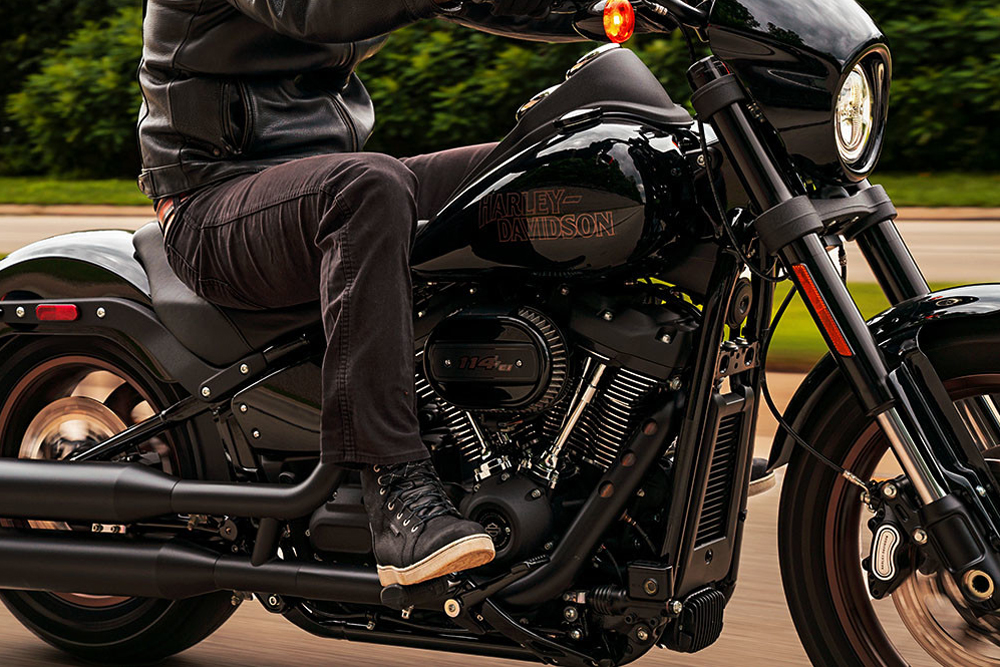

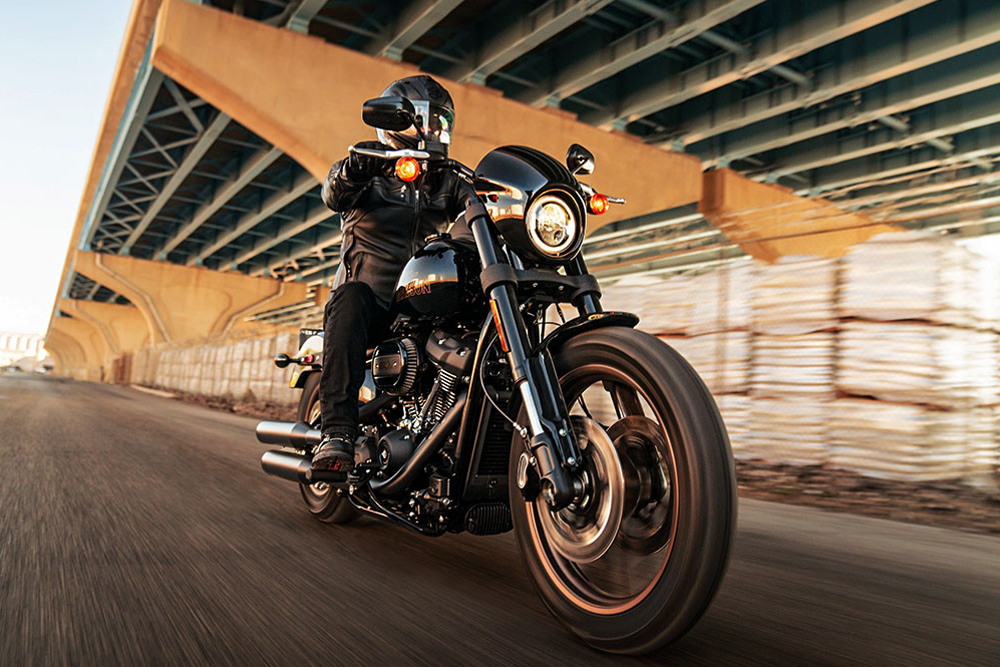

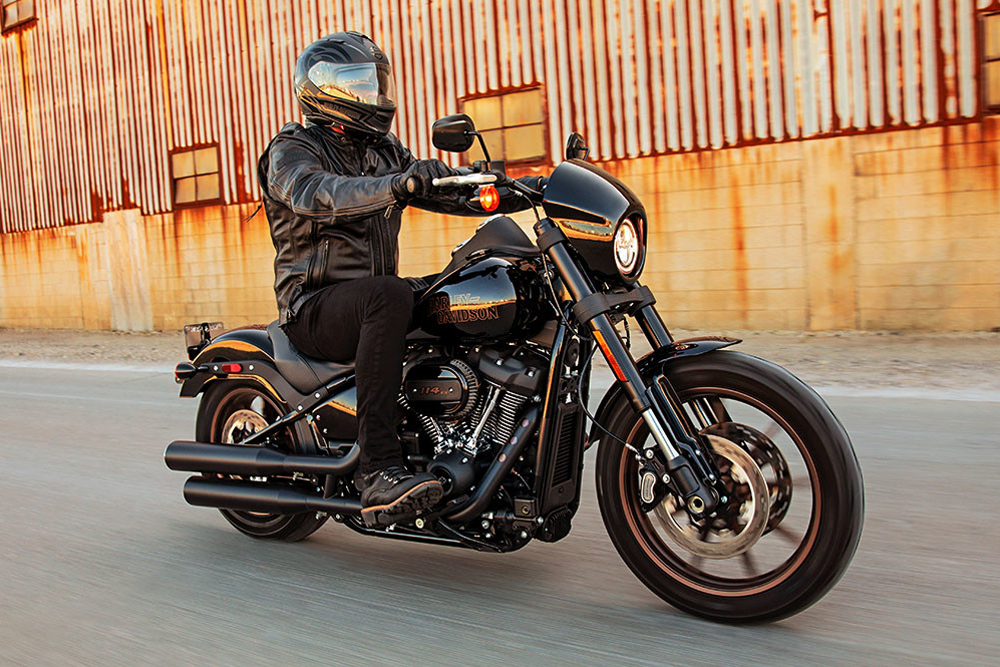

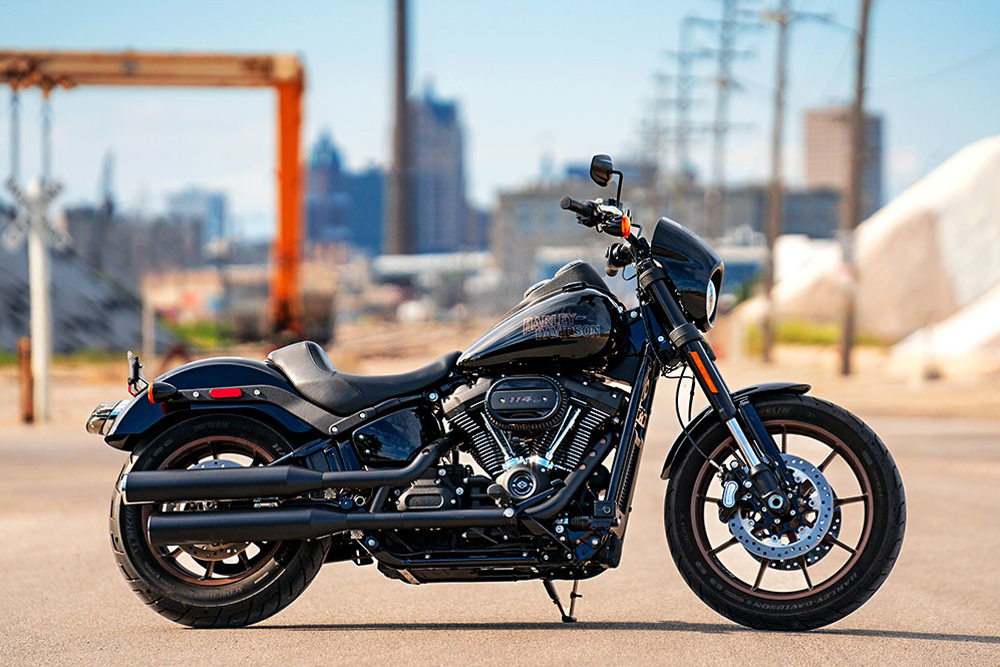

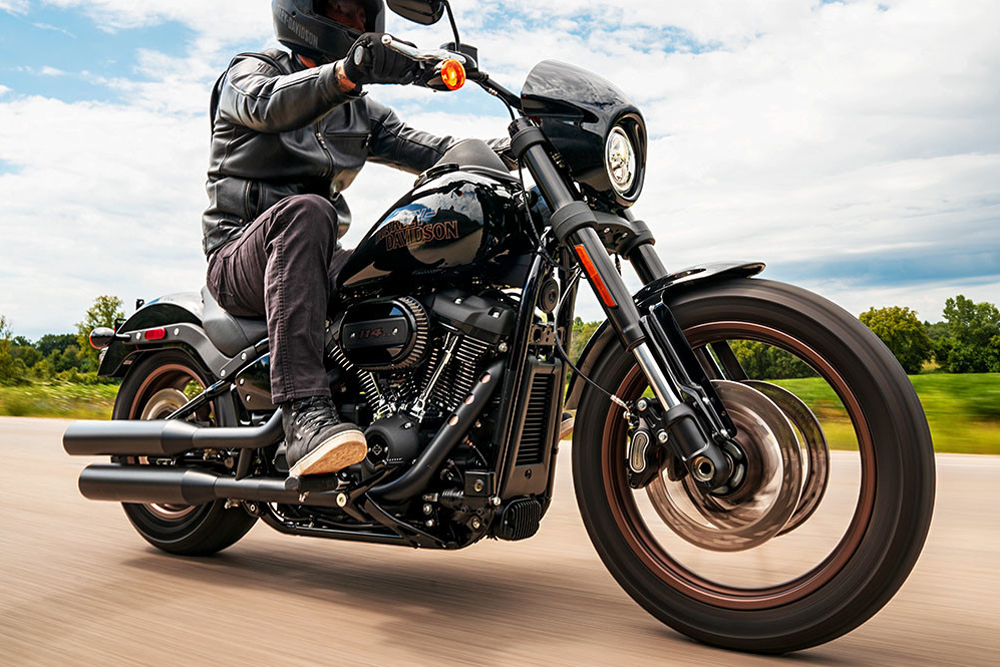

LOW RIDER^™ S

DESCRIPTION

A blacked-out, factory custom performance cruiser.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2355 mm
Seat Height, Unladen	690 mm
Ground Clearance	120 mm
Rake (Steering Head) (Deg)	28
Trail	145 mm
Wheelbase	1615 mm
Tires, Front Specifications	110/90B19,62H,BW
Tires, Rear Specification	180/70B16,77H,BW
Fuel capacity	18.9 l
Oil Capacity (W/Filter)	4.7 l
Weight, as Shipped	295 kg
Weight, in Running Order	308 kg

ENGINE

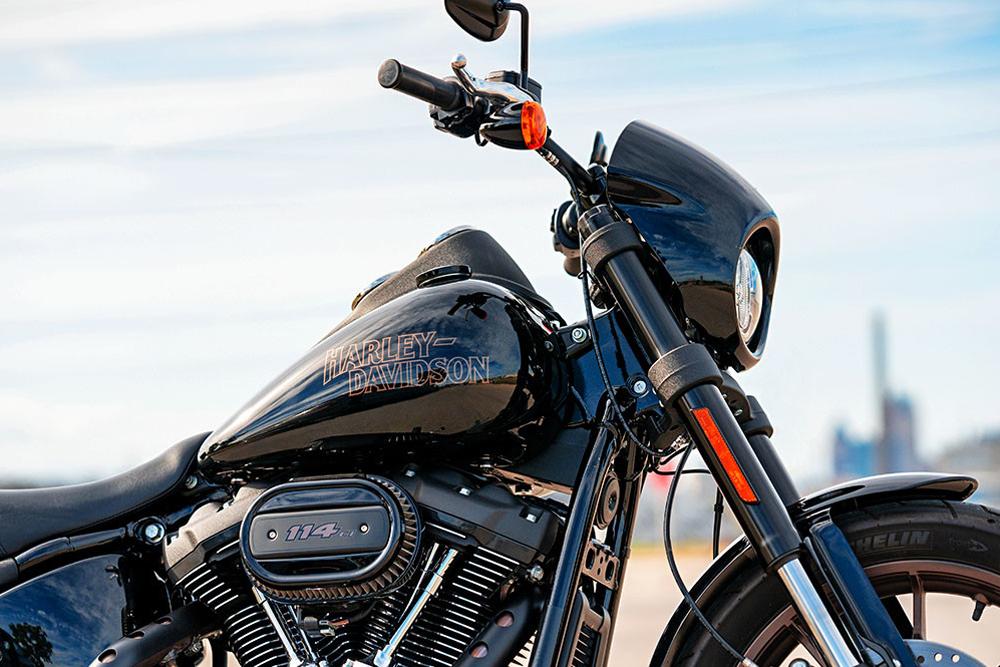

Engine	Milwaukee-Eight^™ 114
Bore	102 mm
Stroke	114 mm
Displacement	1868 cm³
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-2 offset shotgun; catalyst in muffler

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.311
Gear Ratio (Overall) 2^nd (*Cert)	6.454
Gear Ratio (Overall) 3^rd (*Cert)	4.793
Gear Ratio (Overall) 4^th (*Cert)	3.882
Gear Ratio (Overall) 5^th (*Cert)	3.307
Gear Ratio (Overall) 6^th (*Cert)	2.79

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	155 Nm
Engine Torque (RPM)	3250
Lean Angle, Right (Deg.)	30
Lean Angle, Left (Deg.)	30

CHASSIS

Wheels, Front Type	Dark bronze, Radiate cast aluminum wheel
Wheels, Rear Type	Dark bronze, Radiate cast aluminum wheel
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxiliary lighting, ABS, security, low battery voltage, low fuel
Gauges	4-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4-inch analog tachometer
