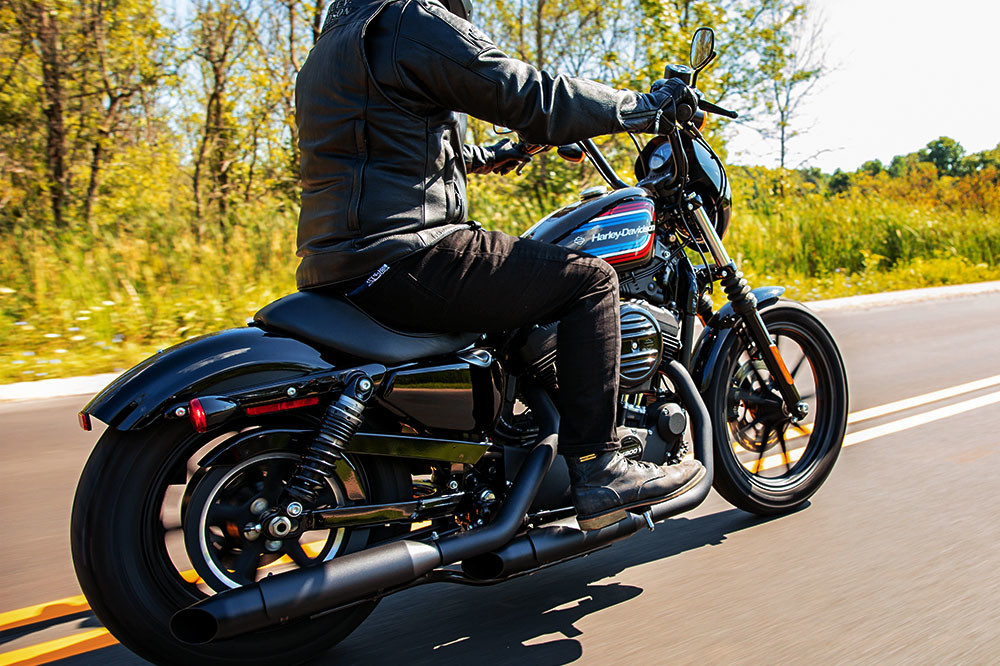

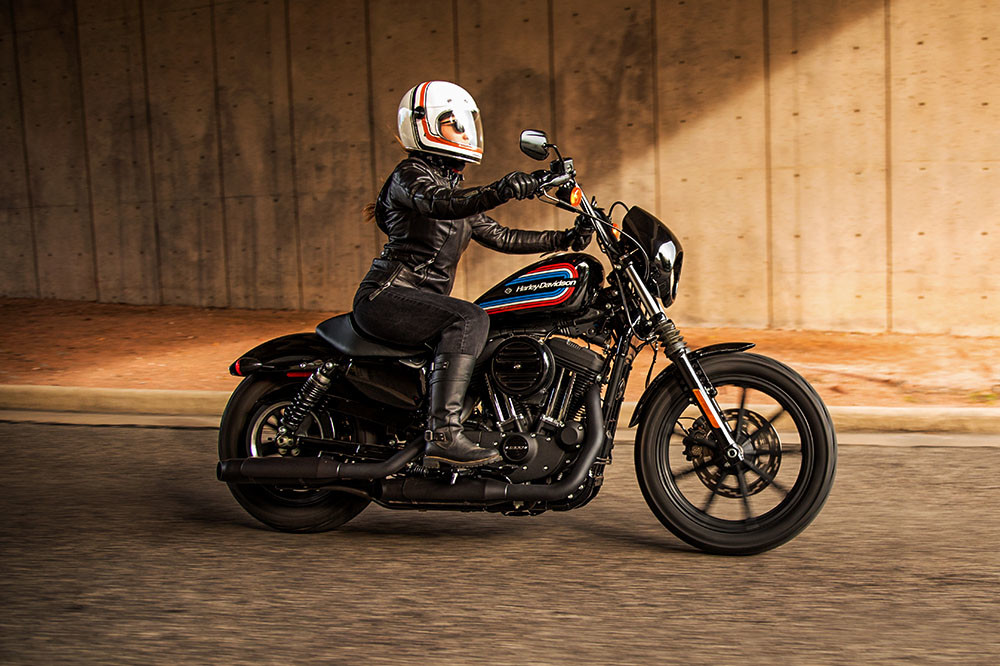

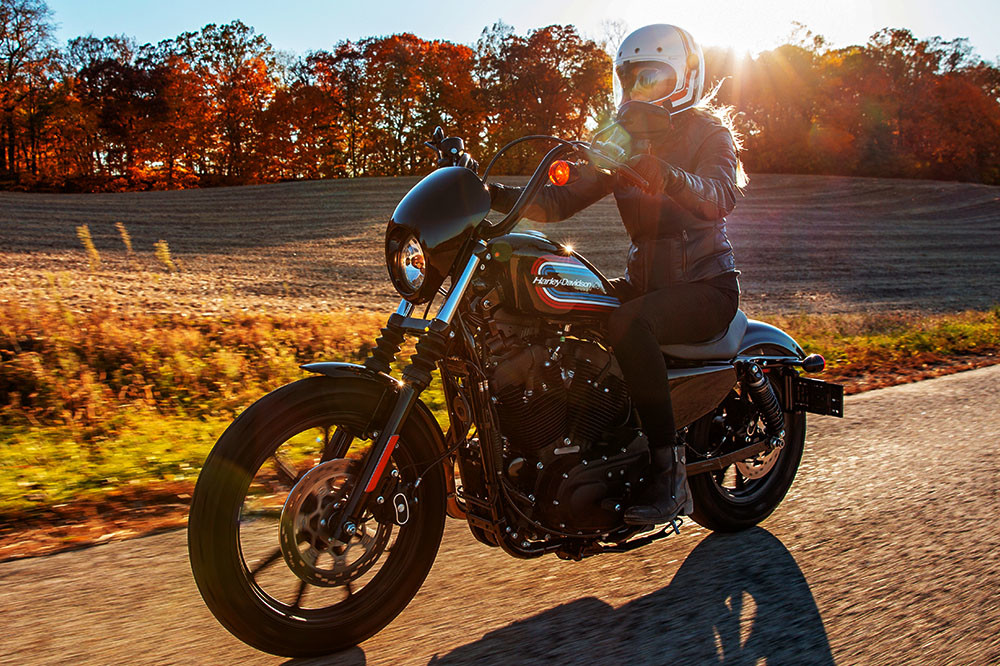

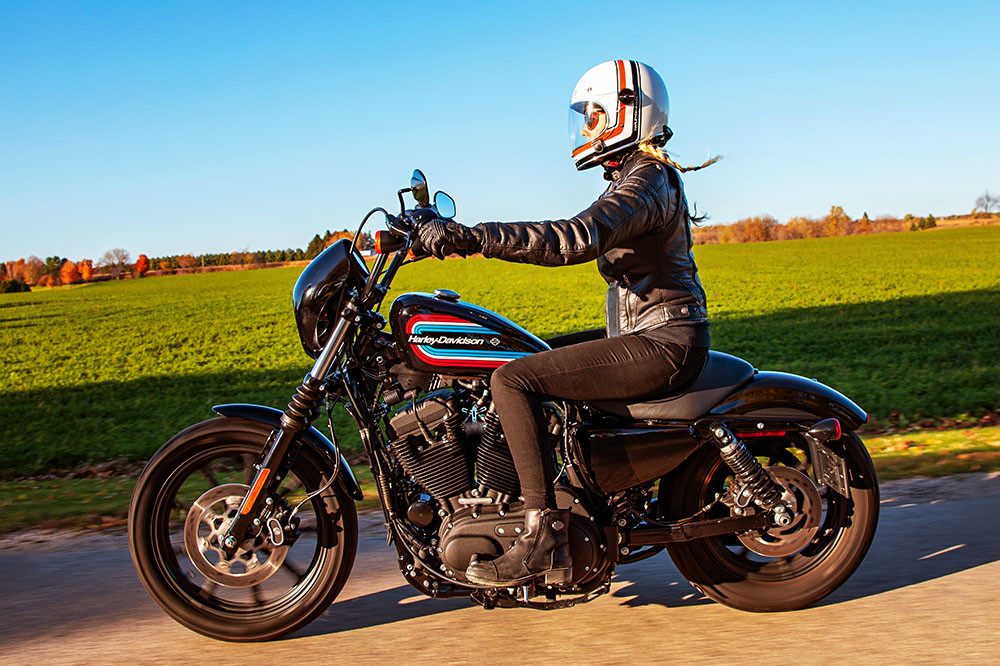

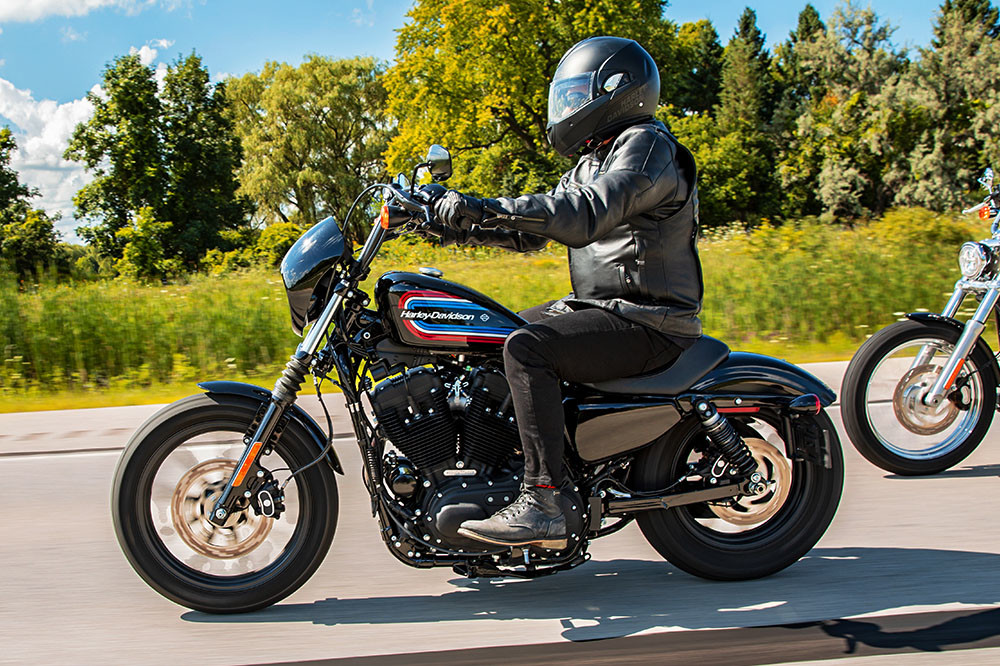

IRON 1200^™

DESCRIPTION

A modern take on what’s been putting big grins on the faces of Sportster® motorcycle riders for decades.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2200 mm
Seat Height, Unladen	735 mm
Ground Clearance	110 mm
Rake (Steering Head) (Deg)	30
Trail	117 mm
Wheelbase	1515 mm
Tires, Front Specifications	100/90B19 57H
Tires, Rear Specification	150/80B16 77H
Fuel capacity	12.5 l
Oil Capacity (W/Filter)	2.6 l
Weight, as Shipped	248 kg
Weight, in Running Order	256 kg

ENGINE

Engine	Air-cooled, Evolution^™
Bore	88.9 mm
Stroke	96.8 mm
Displacement	1202 cm³
Compression Ratio	10.01
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	Black, staggered, shorty exhaust with dual mufflers

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 38/57 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.004
Gear Ratio (Overall) 2^nd (*Cert)	6.432
Gear Ratio (Overall) 3^rd (*Cert)	4.783
Gear Ratio (Overall) 4^th (*Cert)	3.965
Gear Ratio (Overall) 5^th (*Cert)	3.4

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	96 Nm
Engine Torque (RPM)	3500
Lean Angle, Right (Deg.)	27
Lean Angle, Left (Deg.)	28

CHASSIS

Wheels, Front Type	Black, 9-spoke
Wheels, Rear Type	Black, 9-spoke
Brakes, Caliper Type	Dual-piston front, Dual-piston rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped)
Gauges	Blacked-out chopper profile with the power to go beyond the city limits.
