HERITAGE CLASSIC

DESCRIPTION

The dark style, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2415 mm
Seat Height, Unladen	680 mm
Ground Clearance	120 mm
Rake (Steering Head) (Deg)	30
Trail	140 mm
Wheelbase	1630 mm
Tires, Front Specifications	130/90B16,73H,BW
Tires, Rear Specification	150/80B16,77H,BW
Fuel capacity	18.9 l
Oil Capacity (W/Filter)	4.7 l
Weight, as Shipped	316 kg
Weight, in Running Order	330 kg
Luggage Capacity - Volume	0.043 m³

ENGINE

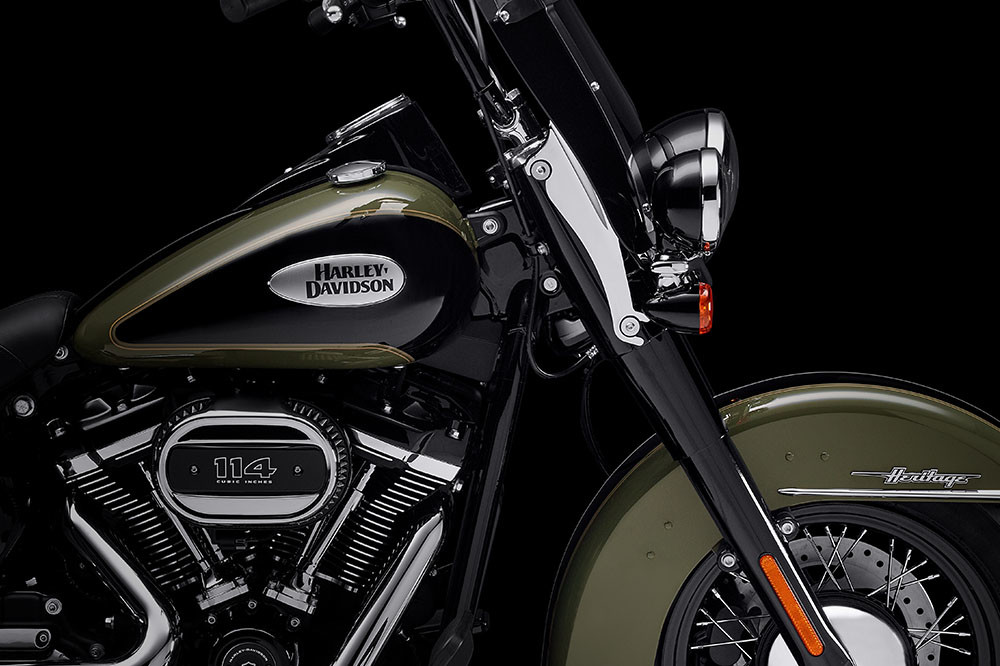

Engine	Milwaukee-Eight^™ 114
Bore	102 mm
Stroke	114 mm
Displacement	1868 cm³
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-2 shorty dual; catalyst in muffler

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.311
Gear Ratio (Overall) 2^nd (*Cert)	6.454
Gear Ratio (Overall) 3^rd (*Cert)	4.793
Gear Ratio (Overall) 4^th (*Cert)	3.882
Gear Ratio (Overall) 5^th (*Cert)	3.307
Gear Ratio (Overall) 6^th (*Cert)	2.79

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	155 Nm
Engine Torque (RPM)	3250
Lean Angle, Right (Deg.)	27.3
Lean Angle, Left (Deg.)	28.5

CHASSIS

Wheels, Front Type	Gloss Black, Steel Laced
Wheels, Rear Type	Gloss Black, Steel Laced
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel

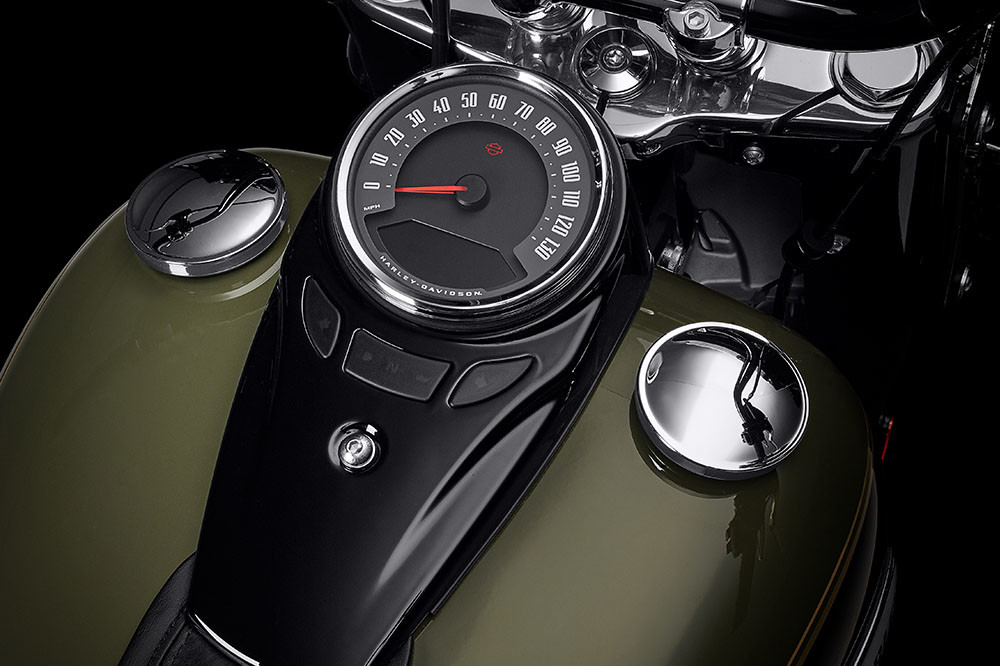

Gauges	5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
