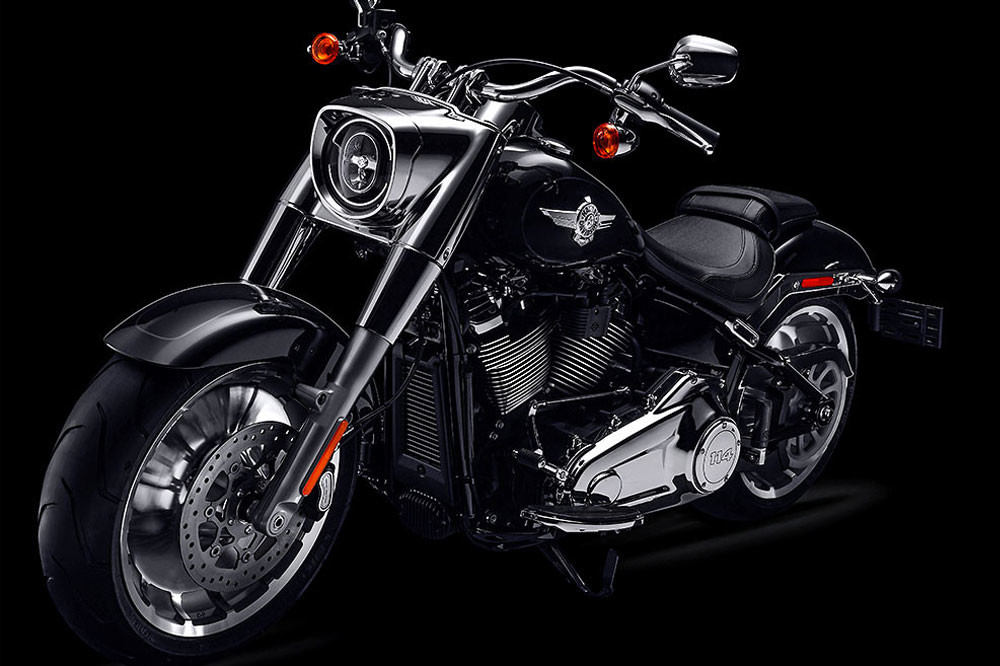

FAT BOY^™

DESCRIPTION

The original fat custom icon. Now lighter than the previous generation Fat Boy 114, and slinging torque from a Milwaukee-Eight^® 114. You’ll feel the difference the instant you crack the throttle.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2370 mm
Seat Height, Unladen	675 mm
Ground Clearance	115 mm
Rake (Steering Head) (Deg)	30
Trail	104 mm
Wheelbase	1665 mm
Tires, Front Specifications	160/60R18,70V,BW
Tires, Rear Specification	240/40R18,79V,BW
Fuel capacity	18.9 l
Oil Capacity (W/Filter)	4.7 l
Weight, as Shipped	304 kg
Weight, in Running Order	317 kg

ENGINE

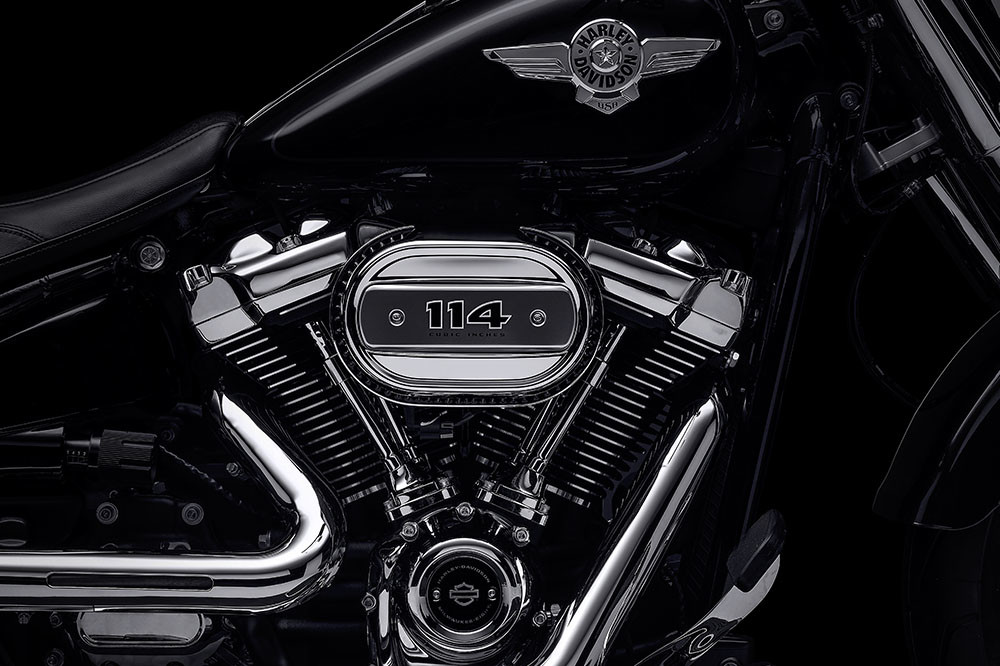

Engine	Milwaukee-Eight^™ 114
Bore	102 mm
Stroke	114 mm
Displacement	1868 cm³
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-2 staggered; catalyst in muffler

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.311
Gear Ratio (Overall) 2^nd (*Cert)	6.454
Gear Ratio (Overall) 3^rd (*Cert)	4.793
Gear Ratio (Overall) 4^th (*Cert)	3.882
Gear Ratio (Overall) 5^th (*Cert)	3.307
Gear Ratio (Overall) 6^th (*Cert)	2.79

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	155 Nm
Engine Torque (RPM)	3250
Lean Angle, Right (Deg.)	25.6
Lean Angle, Left (Deg.)	25.6

CHASSIS

Wheels, Front Type	Machined, Lakester cast aluminum
Wheels, Rear Type	Machined, Lakester cast aluminum
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
Gauges	5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
