DESCRIPTION

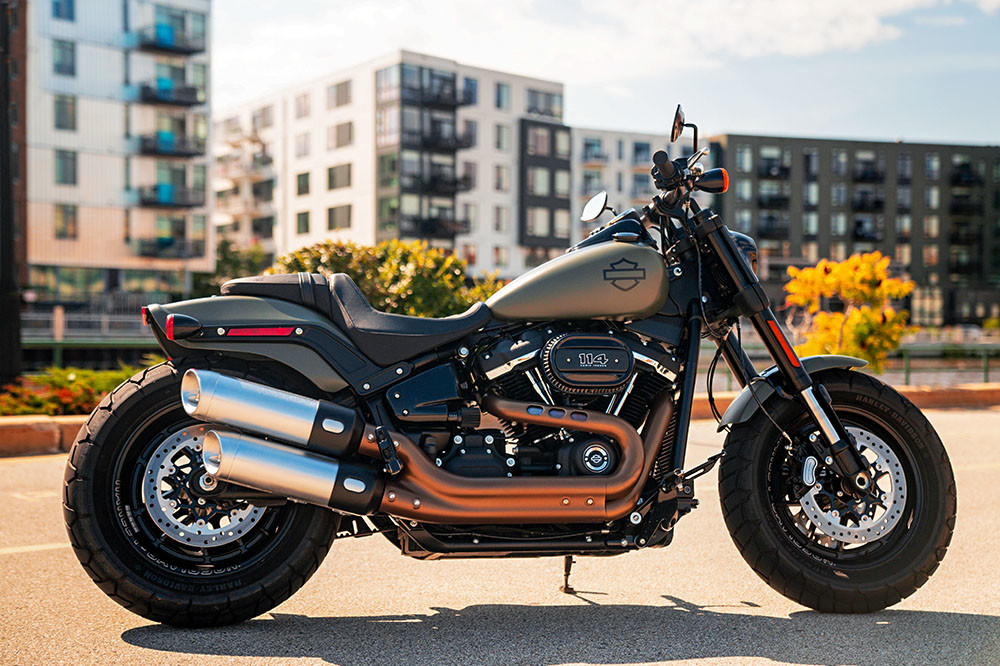

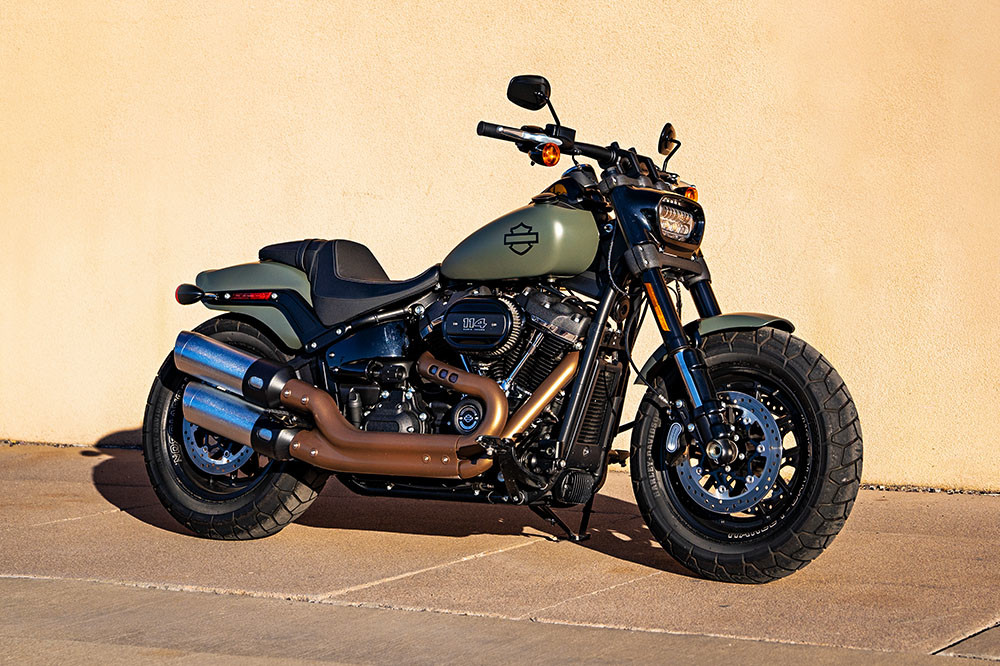

The Fat Bob® is all Harley-Davidson, but at the same time, it’s unlike any Harley® motorcycle that ever existed before. From the modern, aggressive look of its 2-1-2 upswept exhaust and tarmac-devouring fat tyres to the massive torque of the Milwaukee-Eight® engine to the ride of the Softail® frame, inverted front forks and easily adjustable rear suspension, it’s built to shake up the status quo. This is for the rider that wants to break new ground at a high rate of speed.
DISCLAIMER
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
SPECIFICATION
DIMENSIONS
Length
2340 mm
Seat Height, Unladen
710 mm
Ground Clearance
120 mm
Rake (Steering Head) (Deg)
28
Trail
132 mm
Wheelbase
1615 mm
Tires, Front Specifications
150/80-16,71H,BW
Tires, Rear Specification
180/70B16,77H,BW
Fuel capacity
13.6 l
Oil Capacity (W/Filter)
4.7 l
Weight, as Shipped
296 kg
Weight, in Running Order
306 kg

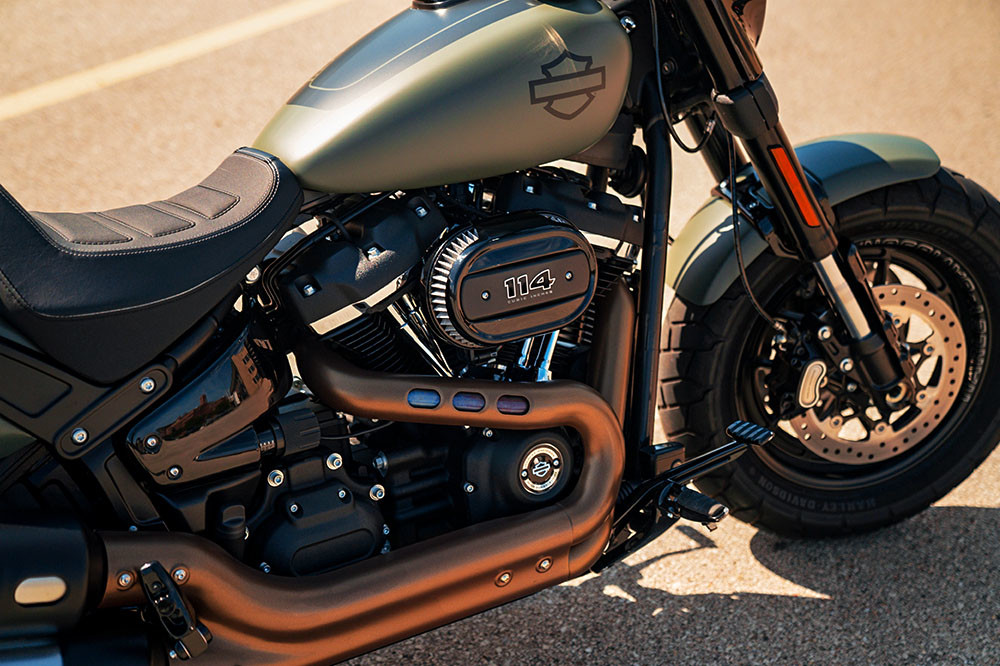

ENGINE
Engine
Milwaukee-Eight™ 114
Bore
102 mm
Stroke
114 mm
Displacement
1868 cm3
Compression Ratio
10.5:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 shorty dual; catalyst in muffler
DRIVE TRAIN
Primary Drive (*Cert)
Chain, 34/46 ratio
Gear Ratio (Overall) 1st (*Cert)
9.311
Gear Ratio (Overall) 2nd (*Cert)
6.454
Gear Ratio (Overall) 3rd (*Cert)
4.793
Gear Ratio (Overall) 4th (*Cert)
3.882
Gear Ratio (Overall) 5th (*Cert)
3.307
Gear Ratio (Overall) 6th (*Cert)
2.79
PERFORMANCE
Engine Torque Testing Method
EC 134/2014
Engine Torque (*Cert)
155 Nm
Engine Torque (RPM)
3500
Lean Angle, Right (Deg.)
31
Lean Angle, Left (Deg.)
32
CHASSIS
Wheels, Front Type
Denim black, Structure cast aluminum with laser etched graphics
Wheels, Rear Type
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear

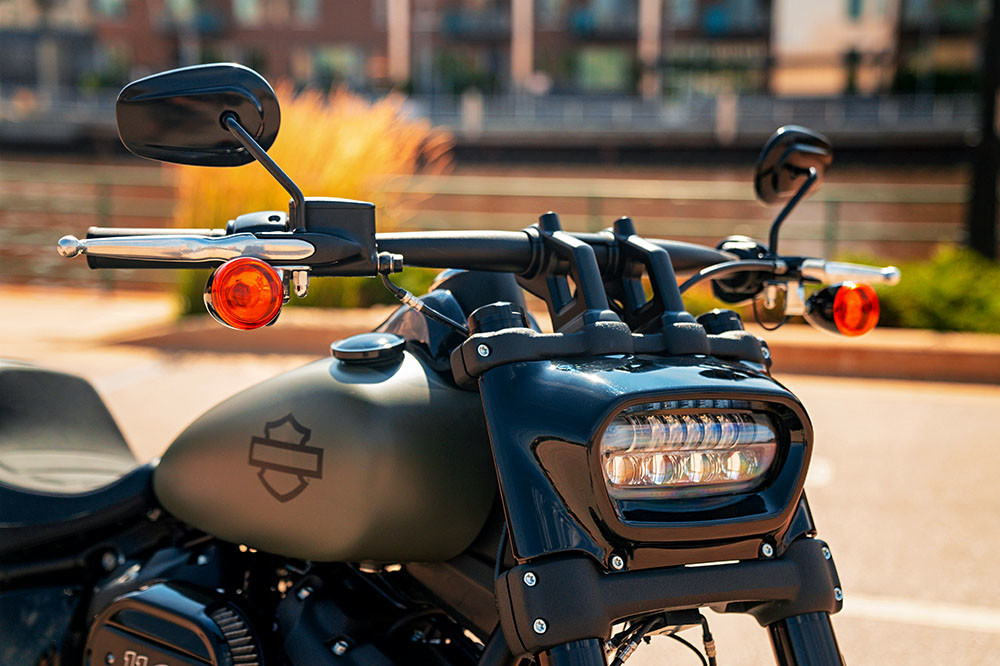

ELECTRIC
Lights (As per country regulation), Indicator Lamps
High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel

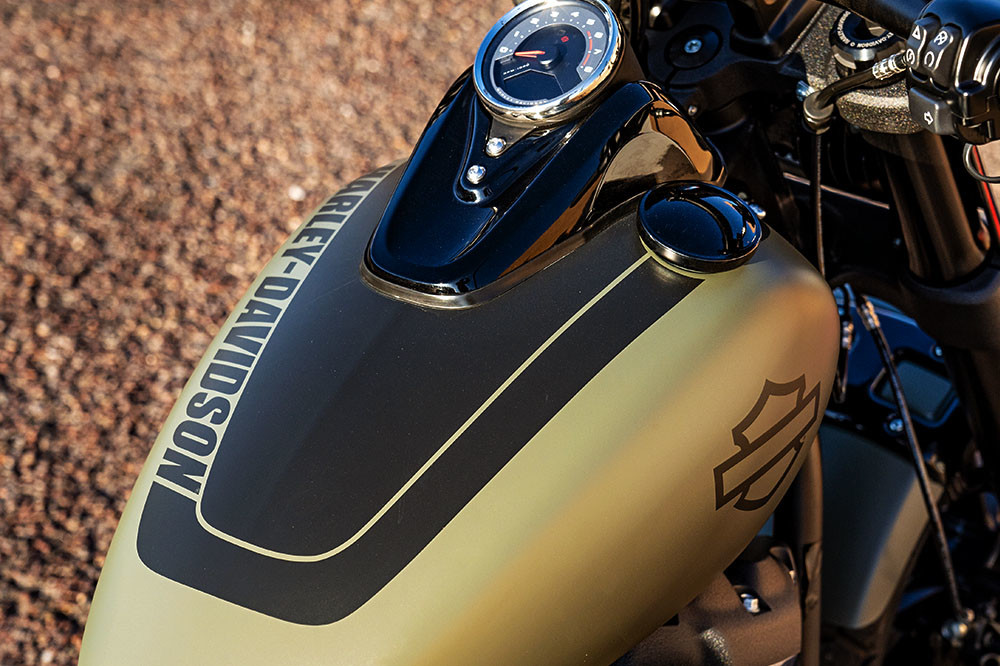

Gauges
4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
