CVO^™ TRI GLIDE^®

DESCRIPTION

The all-new CVO^™ Tri Glide® is a custom trike that's loaded with more premium touring features and chrome accessories than you could ever imagine. Bold styling with premium paint and Tomahawk^™ wheels, Twin-Cooled^™ Milwaukee-Eight® 117 engine and Kahuna^™ controls will thrill riders seeking a one-of-a-kind 3-wheel touring experience.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2670 mm
Seat Height, Unladen	715 mm
Ground Clearance	130 mm
Rake (Steering Head) (Deg)	26
Trail	100 mm
Wheelbase	1670 mm
Tires, Front Specifications	130/60B19 M/C 61H
Tires, Rear Specification	P215/45R18 83T
Fuel Capacity	22.7 l
Oil Capacity	4.7 l
Weight, as Shipped	563 kg
Weight, in Running Order	577 kg
Luggage Capacity - Volume	0.19 m³

ENGINE

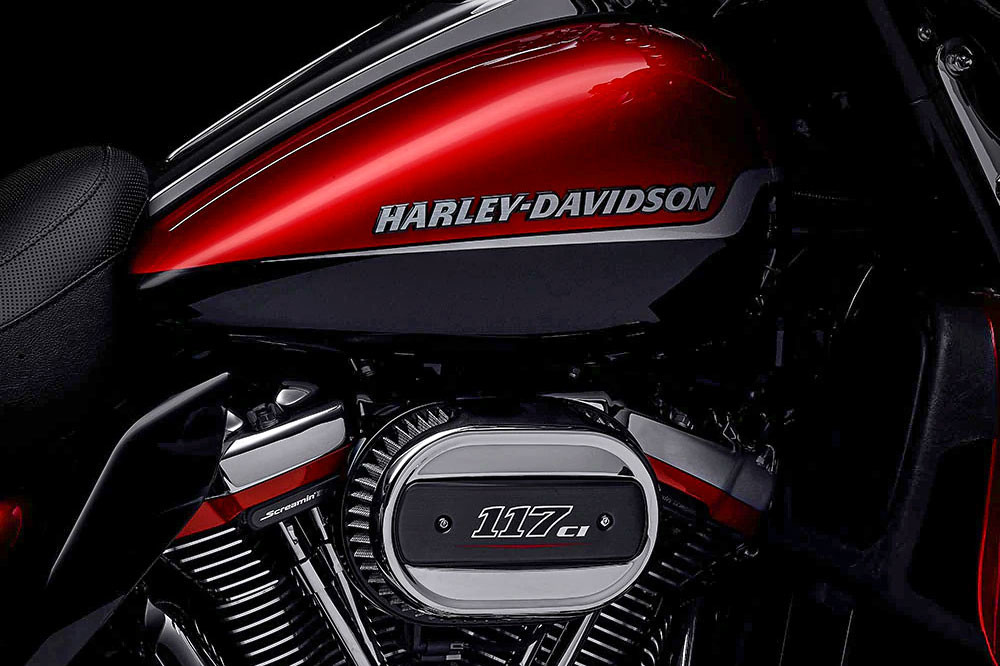

Engine	Twin-Cooled™ Milwaukee-Eight™ 117
Bore	104 mm
Stroke	114 mm
Displacement	1923 cm³
Compression Ratio	10.2:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-1-2 dual exhaust with slash cut tip

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	10.534
Gear Ratio (Overall) 2^nd (*Cert)	7.302
Gear Ratio (Overall) 3^rd (*Cert)	5.423
Gear Ratio (Overall) 4^th (*Cert)	4.392
Gear Ratio (Overall) 5^th (*Cert)	3.741
Gear Ratio (Overall) 6^th (*Cert)	3.157

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	163 Nm
Engine Torque (RPM)	3500

CHASSIS

Wheels, Optional Style Type	Gloss Black and Contrast Smoked Satin Tomahawk
Wheels, Front Type	Gloss Black and Contrast Clear Tomahawk
Wheels, Rear Type	Gloss Black and Contrast Clear Tomahawk
Brakes, Caliper Type	Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High Beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, low fuel warning, reverse, park brake, fog/aux lamp indicator, traction control, security/fault indication, coolant temp, turn signal, ABS, TPMS

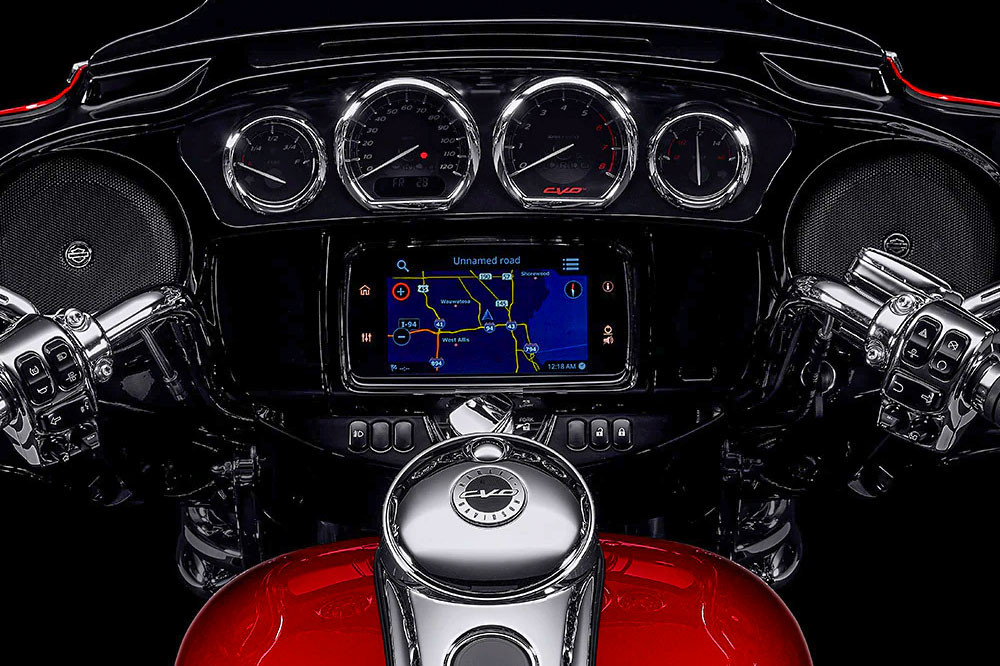

Gauges	Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure

INFOTAINMENT

Infotainment System	Boom!™ Box GTS
Type	Full Color TFT
Watts Per Channel	75
Speakers	4
Speaker Size	Boom! Audio Stage I
Headset Specifications (If equipped)	Boom! Audio 30K Wireless Headset
AM	Standard
FM	Standard
MW	Standard
LW	Standard
SD Card, Flash Drive and MP3 - via USB Connection	Supported
Languages	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Hands-Free Mobile Phone - via Bluetooth	Standard
Voice Recognition Languages: Phone Functions Only	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Voice Recognition Languages: Tuner / Media / Navigation	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Text-to-speech (Tts) Languages	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
Rider/Passenger Intercom	Rider Standard
Vehicle Information Screen (Air Temperature, Oil Pressure And Eitms)	Standard
USB	USB/MTP/iPod/iPhone
Bluetooth	Phone/Media Supported
