CVO^™ STREET GLIDE^™

Length

2435 mm

Seat Height, Unladen

662 mm

Ground Clearance

130 mm

Rake (Steering Head) (Deg)

26

Trail

170 mm

Wheelbase

1625 mm

Tires, Front Specifications

BW 130/60B19 61H

Tires, Rear Specification

BW 180/55B18 80H

Fuel Capacity

22.7 l

Oil Capacity

4.7 l

Weight, as Shipped

376 kg

Weight, in Running Order

393 kg

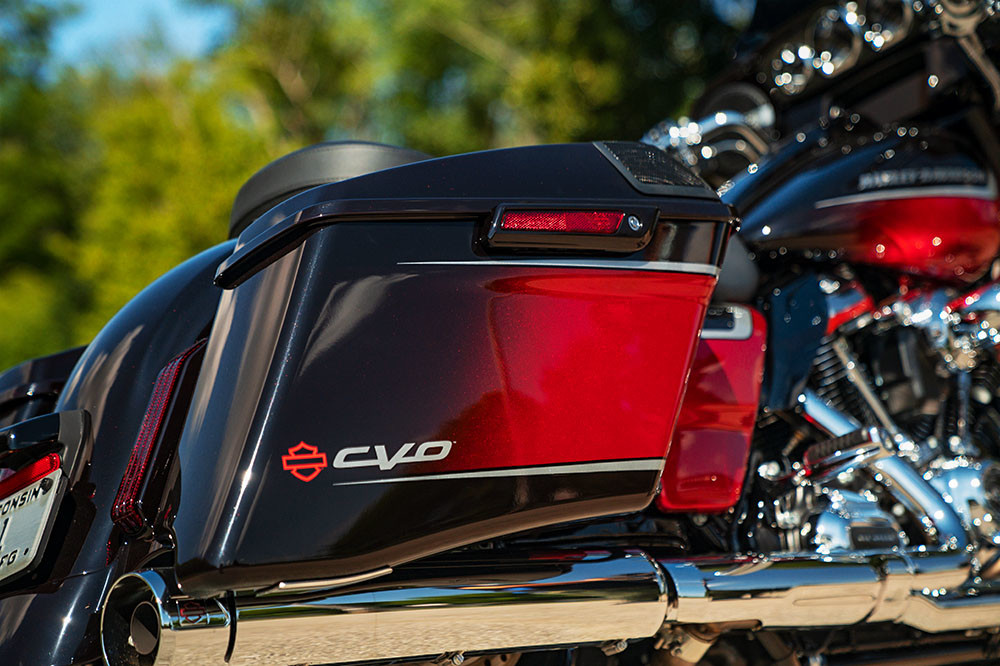

Luggage Capacity - Volume

0.067 m³

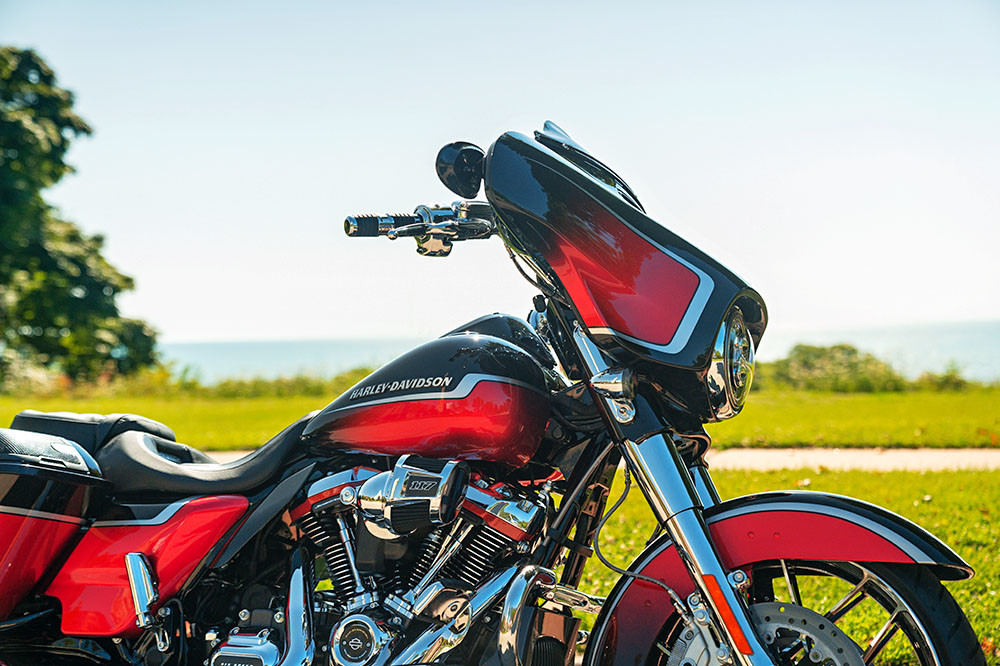

Engine

Milwaukee-Eight™ 117

Bore

103 mm

Stroke

114 mm

Displacement

1917 cm³

Compression Ratio

10.2:1

Fuel System

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

Dual, with crossover

Primary Drive (*Cert)

Chain, 34/46 ratio

Gear Ratio (Overall) 1^st (*Cert)

9.593

Gear Ratio (Overall) 2^nd (*Cert)

6.65

Gear Ratio (Overall) 3^rd (*Cert)

4.938

Gear Ratio (Overall) 4^th (*Cert)

4

Gear Ratio (Overall) 5^th (*Cert)

3.407

Gear Ratio (Overall) 6^th (*Cert)

2.875

Engine Torque Testing Method

J1349

Engine Torque (*Cert)

170 Nm

Engine Torque (RPM)

3750

Lean Angle, Right (Deg.)

32

Lean Angle, Left (Deg.)

31

Fuel Economy Testing Method

Estimated City/Hw

Fuel Economy

5.7l/100km

Wheels, Optional Style Type

Gloss Black with Contrast Smoked Satin Fugitive

Wheels, Front Type

Gloss Black and contrast Chrome Fugitive

Wheels, Rear Type

Gloss Black and contrast Chrome Fugitive

Brakes, Caliper Type

32 mm, 4-piston fixed front and rear

Lights (As per country regulation), Indicator Lamps

Headlight, running lights, directional lights, neutral, low oil pressure, check engine, turn signals, security/fault indication,gear indication, neutral, low fuel warning, cruise control, ABS, Low Tire Pressure/TPMS indicator, Traction Control, Rain Mode, Vehicle Hold Control (VHC)

Gauges

Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment System

Boom!™ Box GTS

Type

Full Color TFT

Watts Per Channel

100

Speakers

4

Speaker Size

Harley-Davidson Audio by Rockford Fosgate Stage II

Headset Specifications (If equipped)

Boom! Audio 30K Wireless Headset

AM

Standard

FM

Standard

Weather Band (WB)

Standard

SD Card, Flash Drive and MP3 - via USB Connection

Supported

Languages

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Hands-Free Mobile Phone - via Bluetooth

Standard

Voice Recognition Languages: Phone Functions Only

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Voice Recognition Languages: Tuner / Media / Navigation

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Text-to-speech (Tts) Languages

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Rider/Passenger Intercom

Rider Standard

Vehicle Information Screen (Air Temperature, Oil Pressure And Eitms)

Standard

USB

USB/MTP/iPod/iPhone

Bluetooth

Phone/Media Supported
