CVO^™ ULTRA LIMITED

Length

2600 mm

Seat Height, Laden

704 mm

Seat Height, Unladen

760 mm

Ground Clearance

125 mm

Rake (Steering Head) (Deg)

26

Trail

170 mm

Wheelbase

1625 mm

Tires, Front Specifications

BW 130/60B19 61H

Tires, Rear Specification

BW 180/55B18 80H

Fuel Capacity

22.7 l

Oil Capacity

4.7 l

Weight, as Shipped

411 kg

Weight, in Running Order

428.19 kg

Luggage Capacity - Volume

4.7 cu ft (0.132 m³)

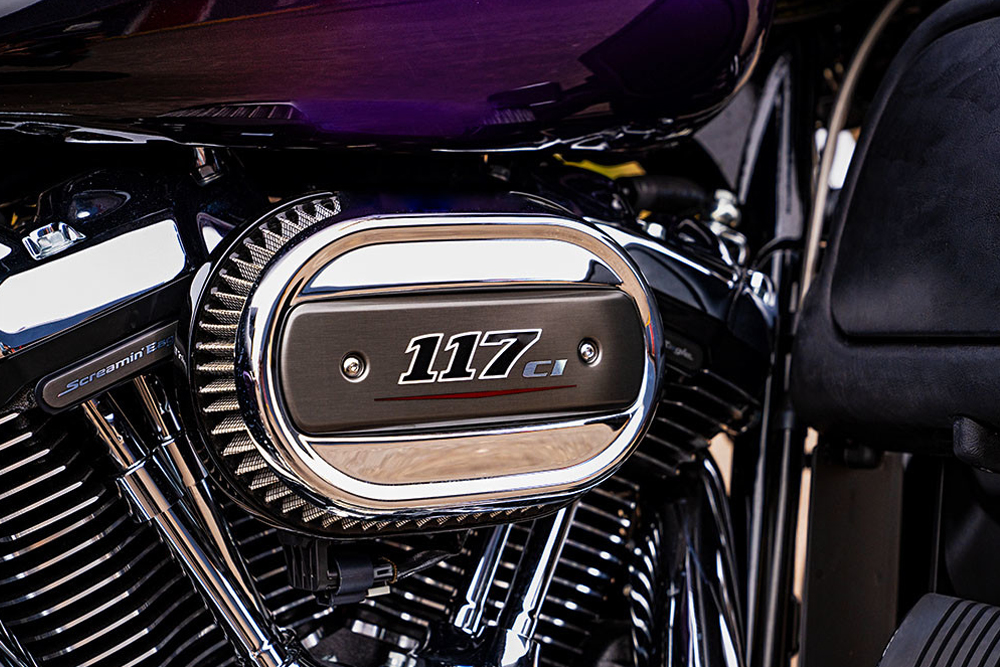

Engine

Twin-Cooled™ Milwaukee-Eight™ 117

Bore

104 mm

Stroke

114 mm

Displacement

1923 cm³

Compression Ratio

10.2:1

Fuel System

Electronic Sequential Port Fuel Injection (ESPFI)

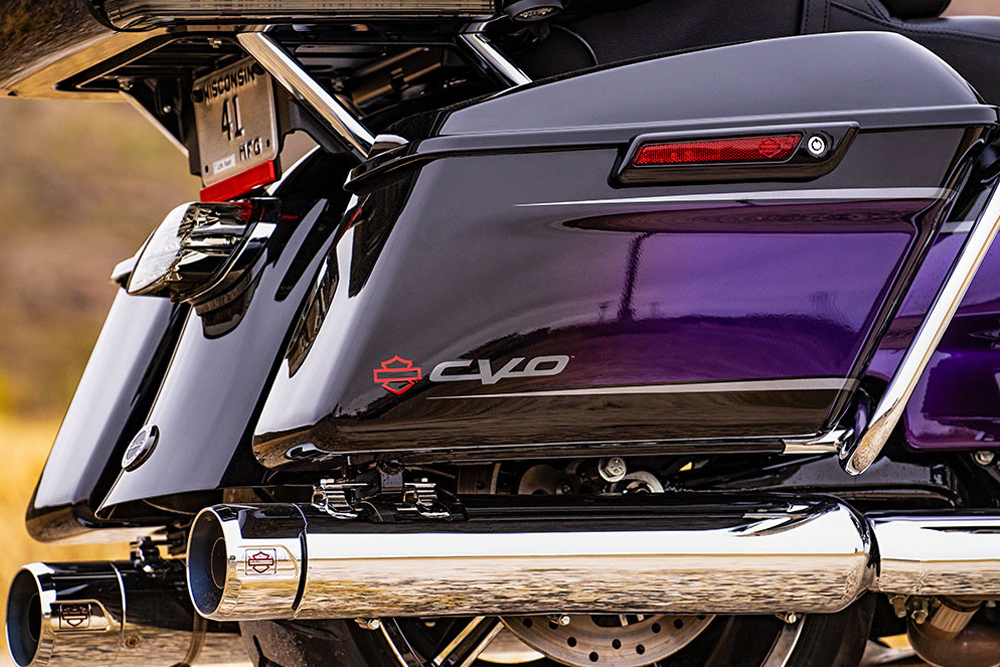

Exhaust

Dual, with crossover

Primary Drive (*Cert)

Chain, 34/46 ratio

Gear Ratio (Overall) 1^st (*Cert)

9.593

Gear Ratio (Overall) 2^nd (*Cert)

6.65

Gear Ratio (Overall) 3^rd (*Cert)

4.938

Gear Ratio (Overall) 4^th (*Cert)

4

Gear Ratio (Overall) 5^th (*Cert)

3.407

Gear Ratio (Overall) 6^th (*Cert)

2.875

Engine Torque Testing Method

EC 134/2014

Engine Torque

166 Nm

Lean Angle, Right (Deg.)

34.3

Lean Angle, Left (Deg.)

33.4

Wheels, Front Type

Gloss Black and Contrast Chrome Tomahawk

Wheels, Rear Type

Gloss Black and Contrast Chrome Tomahawk

Wheels, Optional Style Type

Gloss Black and Contrast Smoked Satin Tomahawk

Brakes, Caliper Type

32 mm, 4-piston fixed front and rear

Lights (As per country regulation), Indicator Lamps

Headlight, running lights, directional lights, neutral, low oil pressure, check engine, turn signals, security/fault indication,gear indication, neutral, low fuel warning, cruise control, ABS, Low Tire Pressure/TPMS indicator, Traction Control, Rain Mode, Vehicle Hold Control (VHC), fog/aux lamp indicator

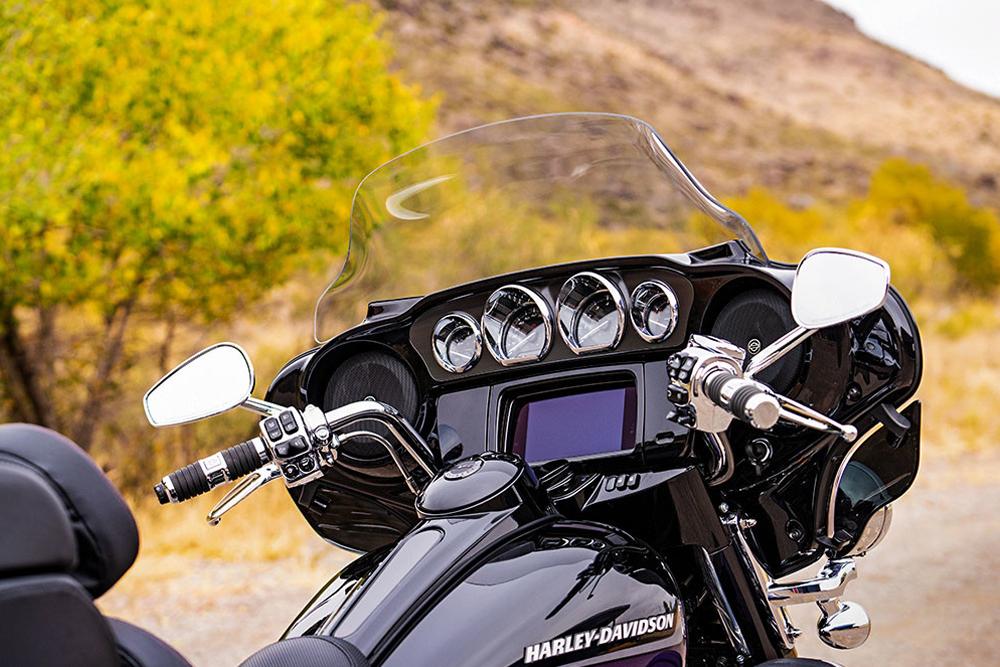

Gauges

- Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

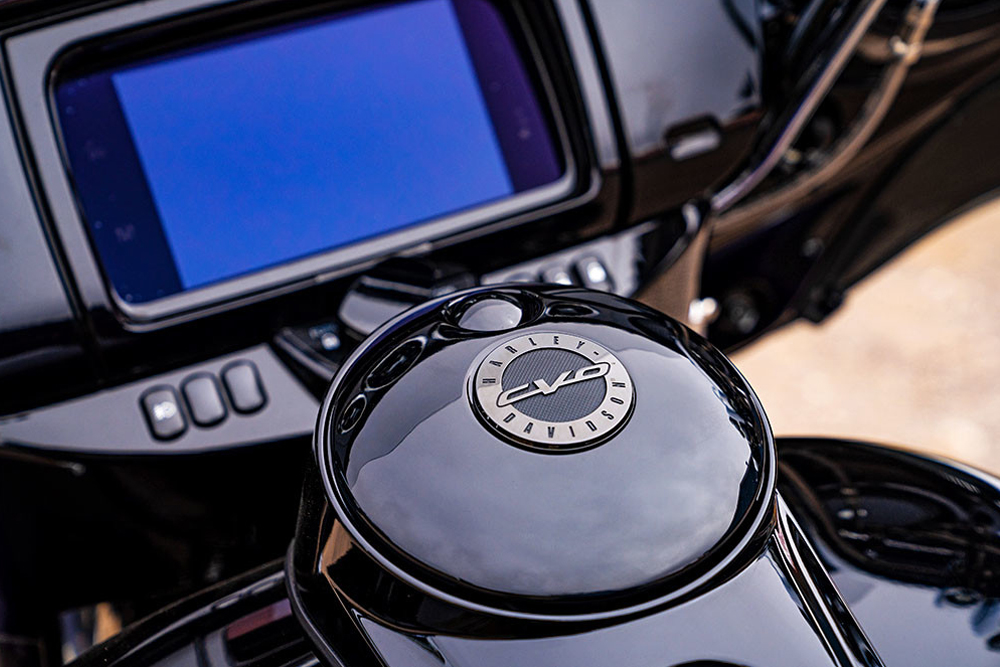

Infotainment System

Boom!™ Box GTS

Type

Full Color TFT

Watts Per Channel

75

Speakers

4

Speaker Size

Boom! Audio Stage I

Headset Specifications (If equipped)

Boom! Audio 30K Wireless Headset

AM

Standard

FM

Standard

Weather Band (WB)

Standard

SD Card, Flash Drive and MP3 - via USB Connection

Supported

SiriusXM Presets

20 - P&A Upgrade (USA & Canada only)

Languages

English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic

Hands-Free Mobile Phone - via Bluetooth

Standard

Voice Recognition Languages: Phone Functions Only

English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic

Voice Recognition Languages: Tuner / Media / Navigation

English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic

Text-to-speech (Tts) Languages

English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic

Rider/Passenger Intercom

Standard (Passenger Headset Sold Seperately)

Vehicle Information Screen (Air Temperature, Oil Pressure And Eitms)

Standard

USB

USB/MTP/iPod/iPhone

Bluetooth

Phone/Media Supported
