BREAKOUT^™ 114

DESCRIPTION

The Breakout is a muscular modern chopper with pure ‘stop you in your tracks’ attitude. Be seen. Be respected. And when the light turns green, be gone.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

BOOK TEST RIDE

SPECIFICATION

DIMENSIONS

Length	2370 mm
Seat Height, Unladen	665 mm
Ground Clearance	115 mm
Rake (Steering Head) (Deg)	34
Trail	145 mm
Wheelbase	1695 mm
Tires, Front Specifications	130/60B21,63H,BW
Tires, Rear Specification	240/40R18,79V,BW

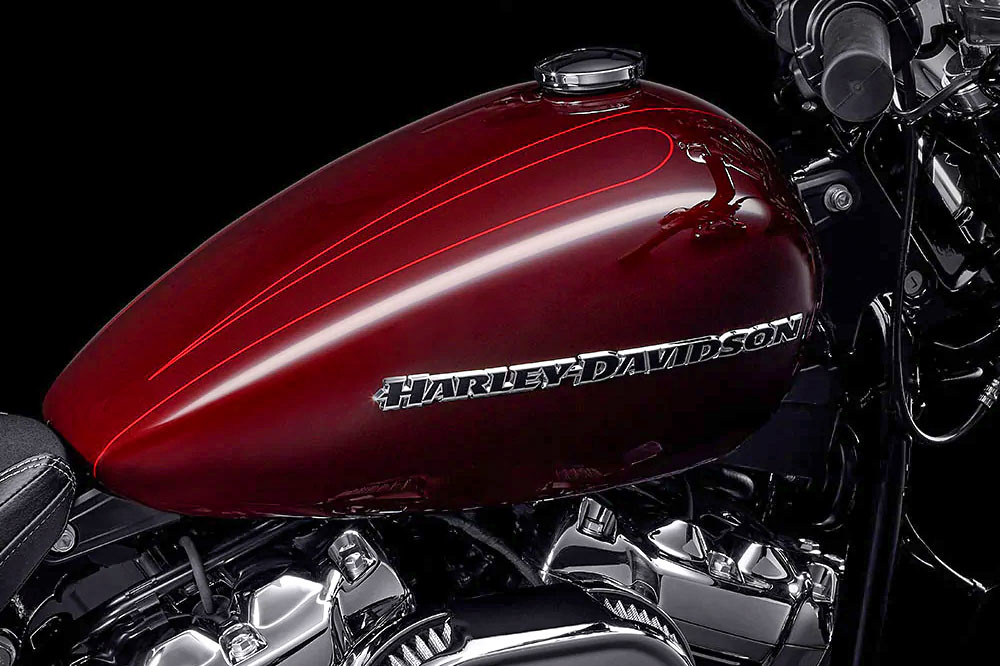

Fuel capacity	13.2 l
Oil Capacity (W/Filter)	4.7 l
Weight, as Shipped	294 kg
Weight, in Running Order	305 kg

ENGINE

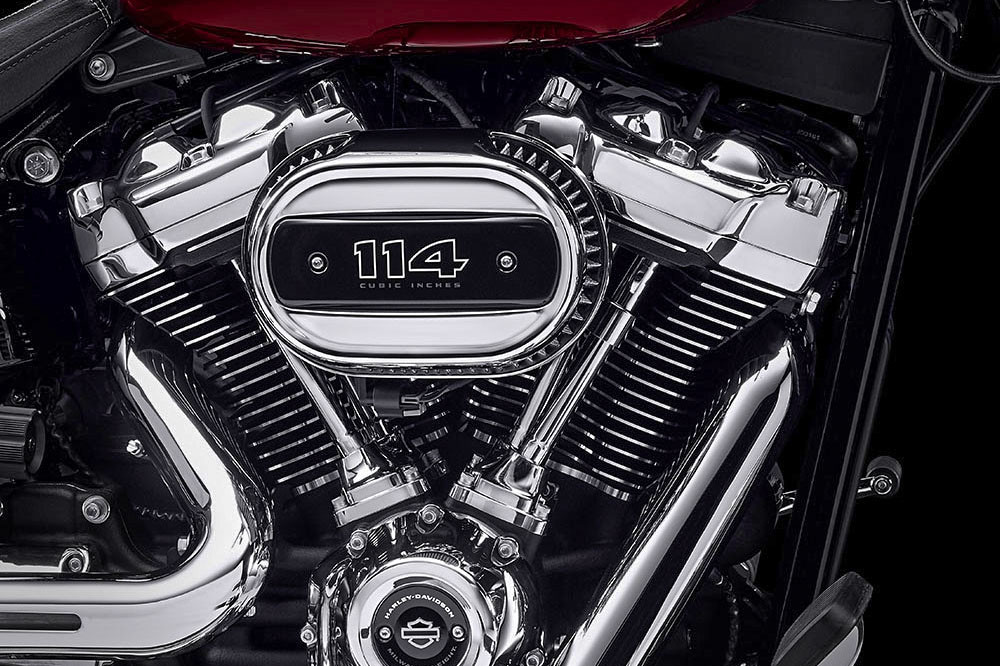

Engine	Milwaukee-Eight^™ 114
Bore	102 mm
Stroke	114 mm
Displacement	1868 cm³
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-2 staggered; catalyst in muffler

DRIVE TRAIN

Primary Drive (*Cert)	Chain, 34/46 ratio
Gear Ratio (Overall) 1^st (*Cert)	9.311
Gear Ratio (Overall) 2^nd (*Cert)	6.454
Gear Ratio (Overall) 3^rd (*Cert)	4.793
Gear Ratio (Overall) 4^th (*Cert)	3.882
Gear Ratio (Overall) 5^th (*Cert)	3.307
Gear Ratio (Overall) 6^th (*Cert)	2.79

PERFORMANCE

Engine Torque Testing Method	EC 134/2014
Engine Torque (*Cert)	155 Nm
Lean Angle, Right (Deg.)	27
Lean Angle, Left (Deg.)	27

CHASSIS

Wheels, Front Type	Gloss black, Gasser II cast aluminum
Wheels, Rear Type	Gloss black, Gasser II cast aluminum
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear

ELECTRIC

Lights (As per country regulation), Indicator Lamps	High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel

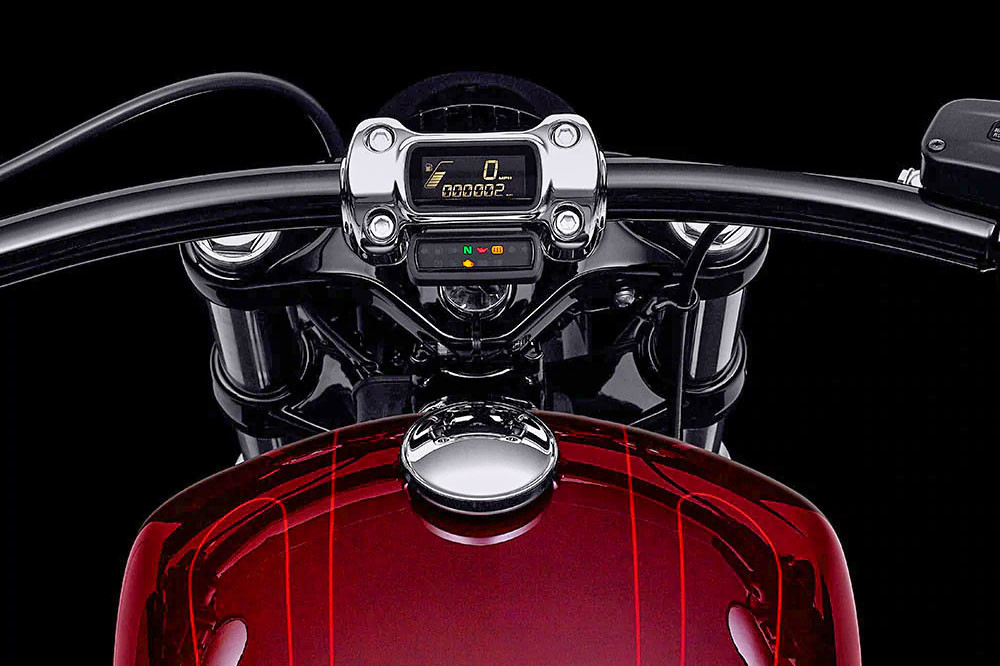

Gauges	2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
